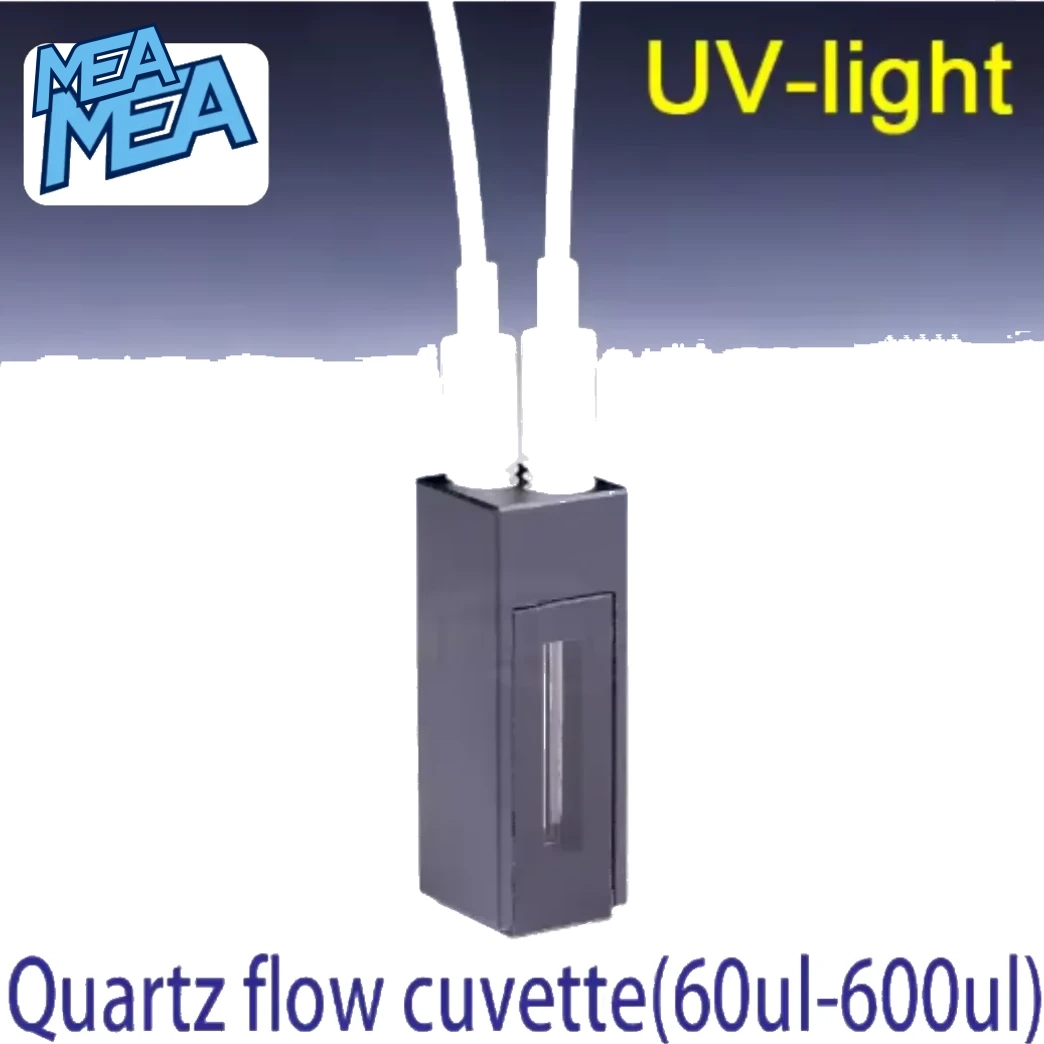

Quartz Flow Cuvette Cell is a high-precision flow-through sample cell manufactured from premium Japanese quartz glass for accurate spectrophotometric analysis.
Available with 1mm, 2mm, 5mm, and 10mm optical path lengths, this quartz flow cuvette provides excellent UV and visible light transmission, making it ideal for laboratory, research, environmental, pharmaceutical, and industrial applications.
Designed for continuous sample flow and highly accurate optical measurements, this quartz flow cuvette cell enables efficient analysis of liquid samples while minimising sample consumption. The high-quality quartz construction delivers exceptional transparency across UV and visible wavelengths, ensuring reliable and reproducible results.
Its compact design and glue-bonding manufacturing process provide durability, chemical resistance, and long-term performance in demanding laboratory environments.
Key Features of the Quartz Flow Cuvette Cell
Premium Japanese Quartz Glass Construction
Manufactured from high-purity Japanese quartz glass that offers:
- Excellent UV and visible light transmission
- Superior optical clarity
- Low background absorption
- High chemical resistance
- Long operational lifespan
Multiple Path Length Options
Choose the ideal optical path length according to your analytical requirements:
- 1mm Path Length: 60µL Capacity
- 2mm Path Length: 120µL Capacity
- 5mm Path Length: 300µL Capacity
- 10mm Path Length: 600µL Capacity
Flow-Through Design
The flow cell configuration allows:
- Continuous sample monitoring
- Automated measurements
- Reduced contamination risk
- Improved sample handling efficiency
- Faster laboratory workflows
Precision Glue Bonding Technology
The advanced glue bonding process ensures:
- Strong structural integrity
- Leak-resistant performance
- Accurate optical alignment
- Consistent measurement results
Benefits of Using a Quartz Flow Cell
Accurate Spectrophotometric Measurements
Quartz offers superior optical transmission compared to glass or plastic cuvettes, enabling accurate absorbance and transmittance measurements across a broad wavelength range.
Reduced Sample Consumption
With capacities ranging from only 60µL to 600µL, the flow cuvette minimises reagent and sample usage, making it ideal for expensive or limited-volume samples.
Suitable for UV-Vis Applications
The quartz material supports measurements in both ultraviolet and visible regions, making it suitable for most UV-Vis spectrophotometers.
Reliable Long-Term Performance
The chemically resistant quartz body withstands exposure to a wide range of laboratory solvents and reagents while maintaining optical integrity.
Applications
This quartz flow cuvette cell is widely used in:
Analytical Laboratories
- UV-Vis spectroscopy
- Absorbance measurements
- Concentration analysis
- Chemical testing
Pharmaceutical Research
- Drug formulation studies
- Quality control testing
- Sample characterisation
Environmental Monitoring
- Water quality analysis
- Pollutant detection
- Environmental sample testing
Biotechnology and Life Sciences
- Protein analysis
- DNA/RNA quantification
- Biochemical assays
Industrial Quality Control
- Process monitoring
- Chemical manufacturing analysis
- Product consistency testing
Technical Specifications
| Specification | Details |
| Product Name | Quartz Flow Cuvette Cell |
| Material | Japanese Quartz Glass |
| Technology | Glue Bonding Process |
| Capacity Range | 60µL – 600µL |
| Path Length Options | 1mm, 2mm, 5mm, 10mm |
| Capacity at 1mm | 60µL |
| Capacity at 2mm | 120µL |
| Capacity at 5mm | 300µL |
| Capacity at 10mm | 600µL |

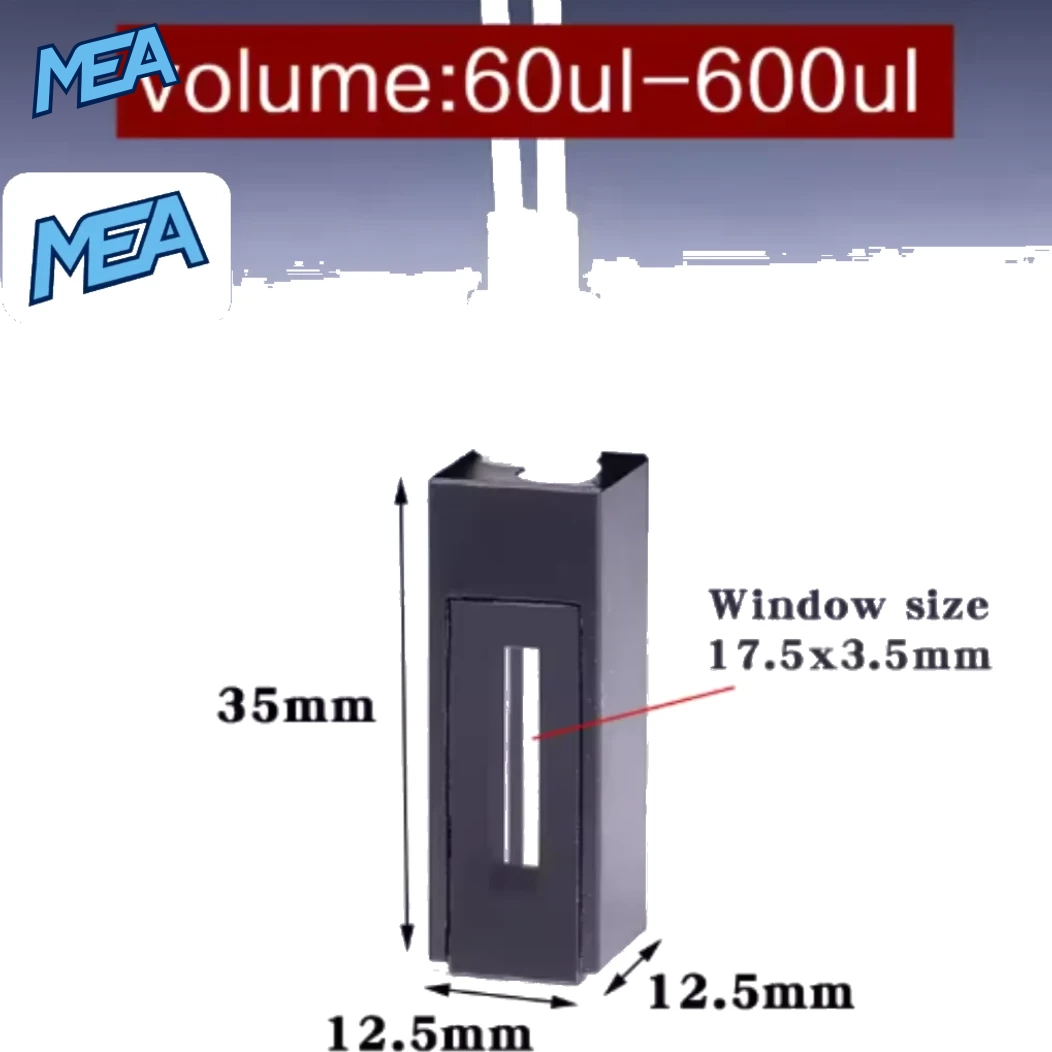

| External Dimensions | 12.5 × 12.5 × 35 mm |
| Type | Flow Through Quartz Cell |
| Application | UV-Vis Spectrophotometers |
| Chemical Resistance | Excellent |
| Optical Clarity | High |
| Construction Method | Precision Glue Bonding |
Why Choose This Quartz Flow Cuvette?
High Optical Performance
The premium quartz construction delivers exceptional light transmission, supporting accurate spectroscopic measurements over a broad wavelength range.
Compact and Efficient Design
The small footprint and low-volume configuration allow efficient analysis while conserving valuable samples and reagents.
Broad Instrument Fitment
Suitable for many UV-Vis spectrophotometers used in research laboratories, universities, pharmaceutical facilities, and industrial testing environments.
Precision Manufacturing
Each flow cuvette is manufactured with strict quality standards to ensure dimensional accuracy, optical consistency, and reliable performance.
Package Includes
- 1 × Quartz Flow Cuvette Cell
- Selected Path Length Configuration (1mm, 2mm, 5mm, or 10mm)
Frequently Asked Questions
What is a quartz flow cuvette cell?
A quartz flow cuvette cell is a spectrophotometer sample holder designed to allow liquid samples to flow continuously through the measurement chamber while maintaining high optical transparency for UV-Vis analysis.
Why is quartz used instead of glass?
Quartz provides significantly better transmission in the ultraviolet region and offers greater chemical resistance, making it ideal for precise spectroscopic measurements.
Which path length should I choose?
- 1mm for highly concentrated samples
- 2mm for moderately concentrated samples
- 5mm for general laboratory applications
- 10mm for dilute samples requiring greater sensitivity
Can this cuvette be used with UV-Vis spectrophotometers?
Yes. The quartz material is specifically designed for UV-Visible spectrophotometry and offers excellent performance across a wide wavelength range.
What is the advantage of a flow-through cuvette?
Flow-through cuvettes allow continuous sample measurement, reduce manual handling, improve automation, and minimise contamination risks.
Is the cuvette chemically resistant?
Yes. The Japanese quartz glass construction offers excellent resistance to many laboratory chemicals, solvents, and reagents.
What sample volume does the cuvette require?
Depending on the selected path length, the required volume ranges from 60µL to 600µL.
Order Your Quartz Flow Cuvette Cell Today
Upgrade your spectrophotometric measurements with a precision-engineered 60µL–600µL Quartz Flow Cuvette Cell.
Featuring premium Japanese quartz glass, multiple path length options, and a durable flow-through design, it delivers reliable, accurate, and repeatable results for laboratory, research, pharmaceutical, and industrial applications.
