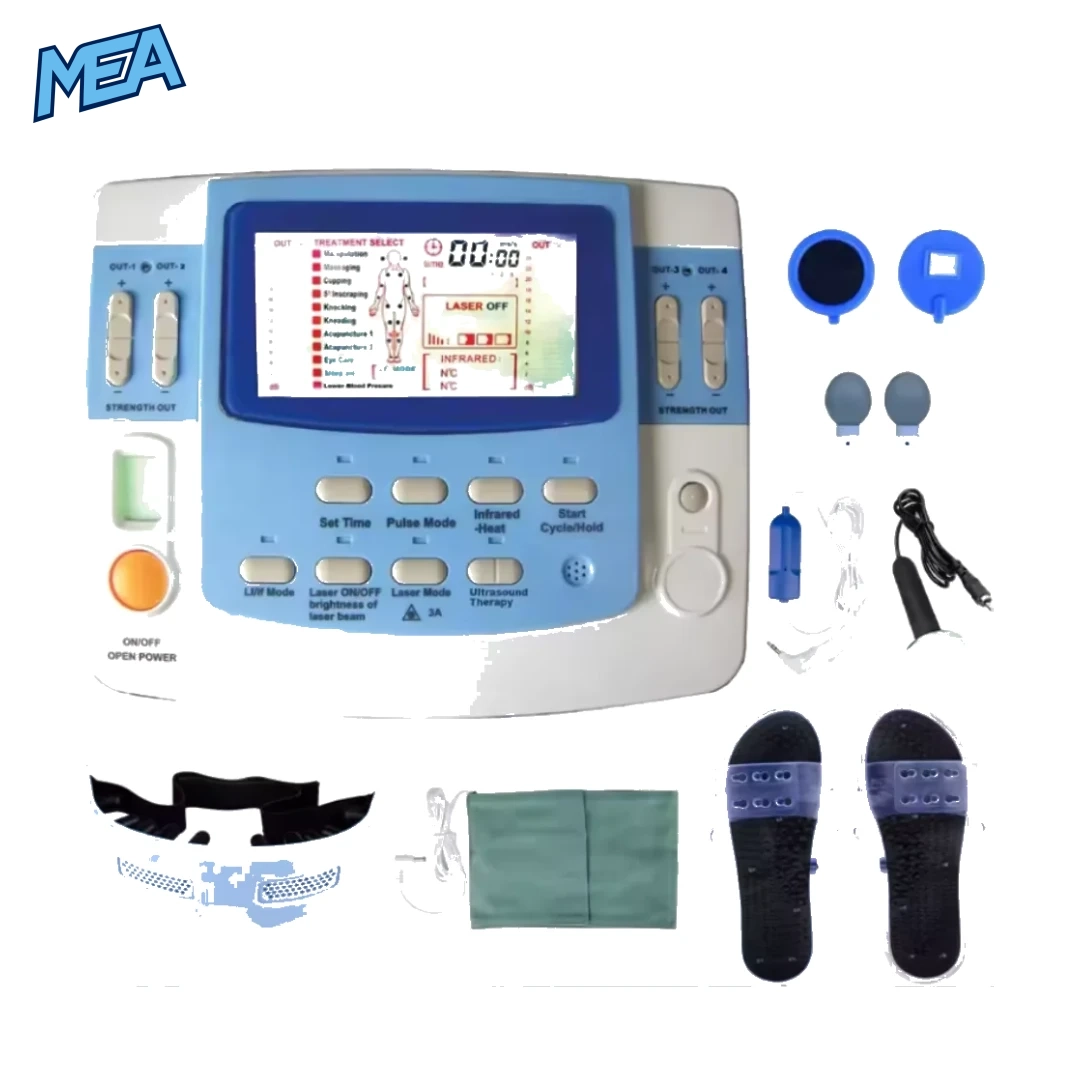

The Pulsed Electromagnetic Ultrasound Therapy Machine is a professional 7-channel physiotherapy device designed for pain management, muscle stimulation, rehabilitation, and wellness applications. It integrates TENS, EMS, pulsed electromagnetic therapy, ultrasound therapy, laser therapy, and far-infrared heat therapy into one multifunctional system, making it suitable for clinics, physiotherapy centres, rehabilitation facilities, wellness practices, and professional home users.
This advanced electrotherapy system combines multiple therapeutic technologies to support muscle recovery, improve circulation, stimulate soft tissues, and assist with rehabilitation programs. Its large LCD display, adjustable treatment parameters, and multiple therapy modes allow practitioners to tailor treatment sessions for a wide range of conditions.
Whether used for sports recovery, musculoskeletal rehabilitation, or general physiotherapy, this multifunction therapy machine offers professional performance in a compact desktop design.
Disclaimer
This equipment is intended for professional physiotherapy, rehabilitation, and wellness applications. Users should operate the device according to the supplied instructions and applicable local regulations. Therapeutic outcomes may vary depending on individual conditions and treatment protocols.
Technical Specifications
| Specification | Details |
| Product Name | Pulsed Electromagnetic Ultrasound Therapy Machine |
| Model | EA-F29U |
| Therapy Channels | 7 Channels |
| Display | Large LCD Screen |
| Power Supply | AC 220V ±22V |
| Frequency | 50Hz ±1Hz |
| Rated Power | ≤28VA |
| Low Frequency Range | 0.5Hz–1000Hz |
| Medium Frequency Range | 1000Hz–4000Hz |
| Pulse Duration | 0.07ms–1.2ms |
| Output Voltage | <25V |
| Maximum Output Energy | <300mJ |
| Heating Temperature | 35°C–60°C |
| Timer Settings | 5, 10, 15, 20, 25, 30 Minutes |
| Main Unit Dimensions | 270 × 220 × 70 mm |
| Weight | 1.7 kg |
| Electrode Pad Size | 82 × 43 mm |
| Output Spectrum | 24 Adjustable Levels |
| Operating Programs | 8 Therapy Modes |
Key Features
Multi-Therapy Technology in One Device
The machine integrates several therapeutic modalities into a single unit, including:
- Pulsed Electromagnetic Therapy (PEMF)
- TENS (Transcutaneous Electrical Nerve Stimulation)
- EMS (Electrical Muscle Stimulation)
- Ultrasound Therapy
- Low-Level Laser Therapy
- Far Infrared Heat Therapy
- Eye Care & Sleep Promotion Function
Professional 7-Channel Output
The system includes seven independent treatment channels:
- 4 Electronic Pulse Therapy Channels
- 1 Ultrasound Therapy Channel
- 1 Laser Therapy Channel
- 1 Far Infrared Heating Channel
- Dedicated Eye Care & Sleep Therapy Function
This configuration enables multiple treatment methods during a therapy session.
Large LCD Display
The high-visibility LCD screen with blue backlight provides clear parameter monitoring in both bright and low-light environments.
Adjustable Therapy Parameters
Users can customise treatments with:
- Low-frequency stimulation
- Medium-frequency stimulation
- Adjustable pulse intensity
- Six treatment timer settings
- Multiple therapeutic waveforms
Eight Built-In Therapy Programs
Pre-configured treatment modes include:
- Acupuncture Mode 1
- Acupuncture Mode 2
- Manipulation Massage
- Traditional Massage
- Skin Scraping Simulation
- Cupping Simulation
- Knocking Therapy
- Kneading Therapy
Benefits of the Pulsed Electromagnetic Ultrasound Therapy Machine
- Supports professional physiotherapy treatments
- Helps stimulate muscles and soft tissues
- Assists rehabilitation after physical activity
- Promotes localized blood circulation
- Provides multiple therapy options from one device
- User-friendly LCD interface
- Compact desktop design
- Suitable for rehabilitation clinics and wellness centres
- Adjustable treatment intensity
- Multiple therapy accessories included
Applications
This multifunction physiotherapy machine is commonly used for:
- Physiotherapy clinics
- Rehabilitation centres
- Sports medicine facilities
- Chiropractic practices
- Pain management clinics
- Wellness centres
- Beauty therapy clinics
- Professional home rehabilitation
Suitable Treatment Areas
- Neck
- Shoulders
- Back
- Lower back
- Arms
- Elbows
- Wrists
- Hands
- Hips
- Knees
- Ankles
- Legs
- Feet
- Abdomen
- Facial care (ultrasound function)
- Eye care
Package Includes
- Main Therapy Unit
- Skin Electrode Pads
- Electrode Leads
- Ultrasound Head
- Laser Therapy Head
- Far Infrared Heating Belt
- Medical Shoes
- Ear Clip
- Eye Mask
- User Accessories
Why Choose This 7-Channel Physiotherapy Machine?
Professional Multi-Modal Therapy
Combines electrical stimulation, ultrasound, laser, and heat therapy into a single compact system.
Easy-to-Operate Interface
A large LCD display with intuitive controls simplifies treatment setup.
Multiple Therapy Programs
Eight preset programs help accommodate different therapy preferences and rehabilitation protocols.
Adjustable Treatment Levels
Twenty-four adjustable output levels enable customised treatment intensity.
Suitable for Professional Environments
Designed for rehabilitation clinics, physiotherapy practices, sports therapy centres, and wellness facilities.
Frequently Asked Questions
What therapies are included in this machine?
The unit integrates Pulsed Electromagnetic Therapy (PEMF), TENS, EMS, ultrasound therapy, laser therapy, far infrared heat therapy, and multiple electrotherapy massage programs in one professional system.
How many channels does the machine provide?
It features seven therapy channels, including four electronic pulse channels, one ultrasound channel, one laser therapy channel, and one far infrared heating channel, plus a dedicated eye care function.
Is the treatment intensity adjustable?
Yes. The machine offers 24 adjustable output levels, allowing users to customise treatment intensity according to individual requirements.
Where can this physiotherapy machine be used?
It is suitable for physiotherapy clinics, rehabilitation centres, chiropractic practices, sports medicine facilities, wellness clinics, and professional home rehabilitation.
Does the machine include preset treatment programs?
Yes. It includes eight built-in therapy programs, such as acupuncture simulation, massage, cupping simulation, scraping simulation, kneading, and knocking therapy modes.
Does the machine include accessories?
Yes. The package includes the main unit, electrode pads, therapy cables, ultrasound head, laser head, infrared heating belt, medical shoes, ear clip, eye mask, and related accessories.
