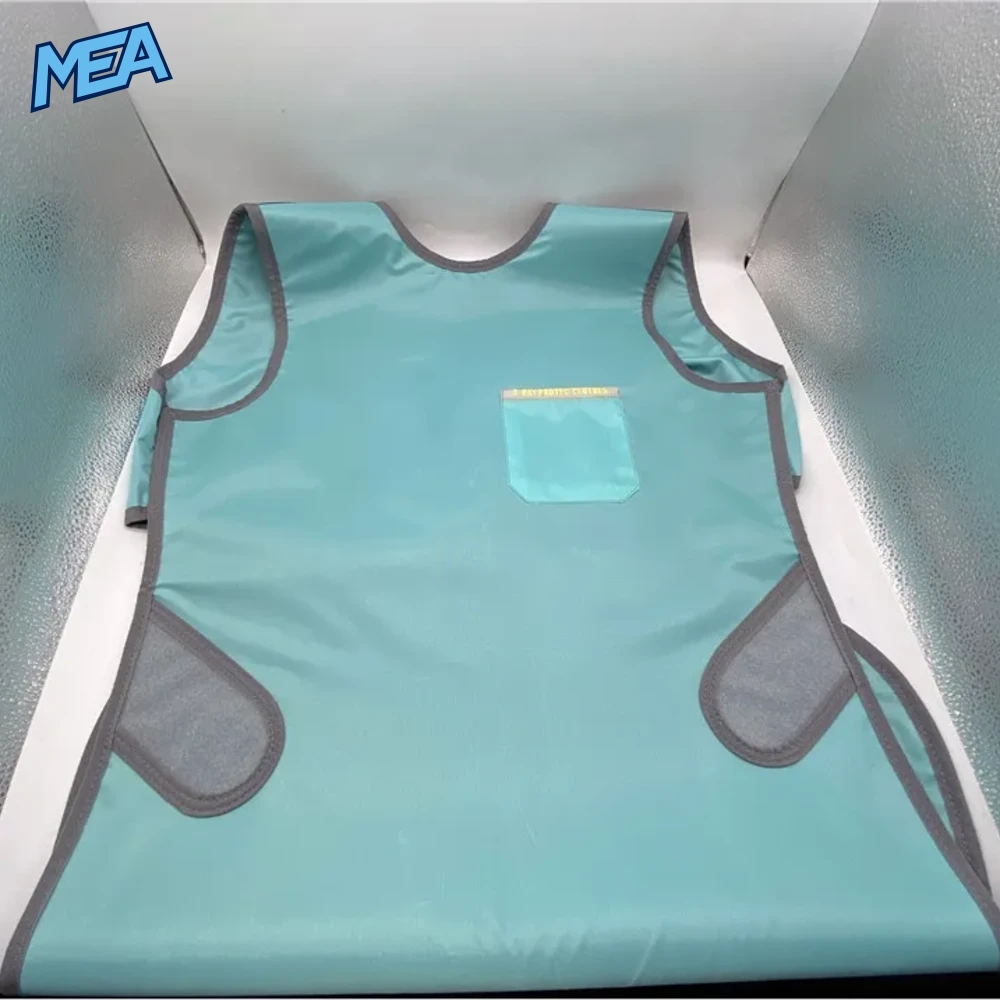

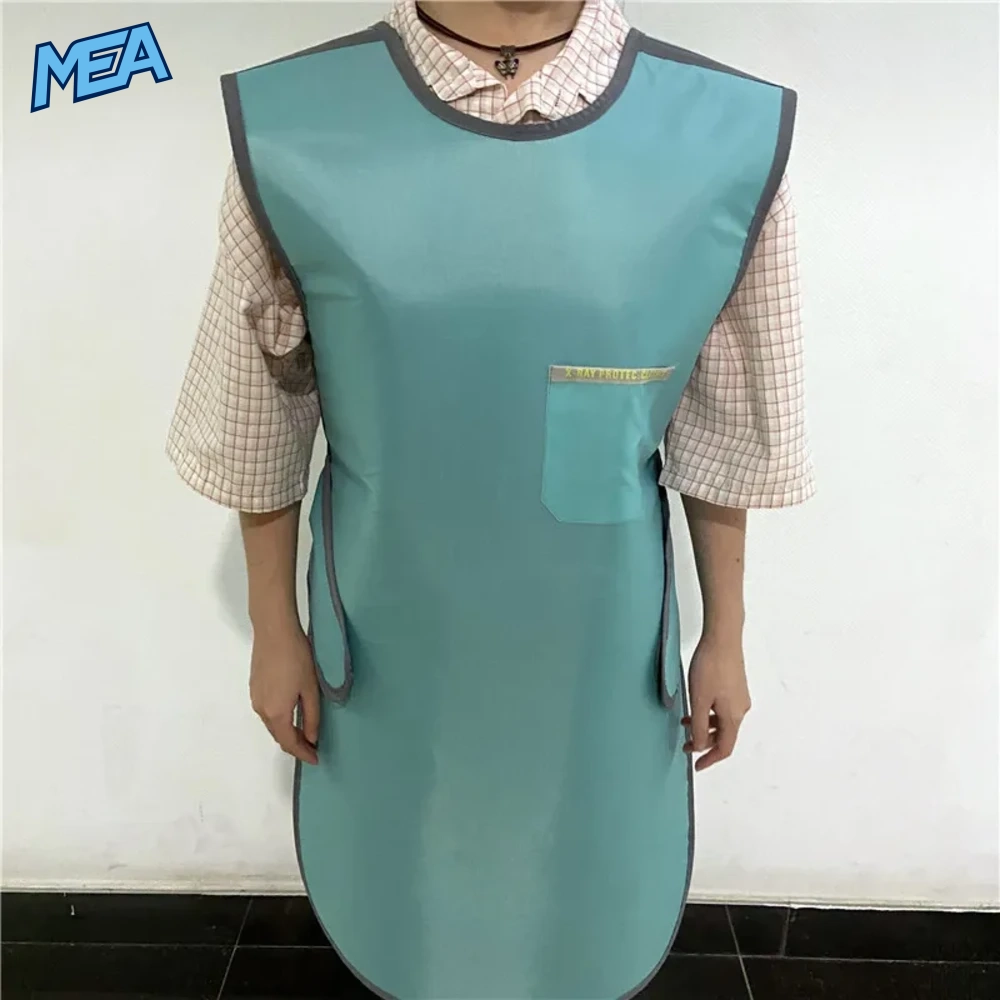

The PA07 dental lead vest is a sleeveless, front-protection X-ray apron with a 0.5mm Pb lead-equivalent shielding panel, designed to protect dental staff, radiographers and patients from scattered diagnostic X-ray radiation. It slips on over the head, fastens with crossed back straps and a wide hook-and-loop waist belt, and is finished in a wipe-clean light blue fabric with grey edge binding and a front pocket.
Supplied in four sizes (S, M, L and XL), this 0.5mm Pb lead apron is a practical everyday choice for dental surgeries, imaging rooms, veterinary clinics and radiation laboratories.
Why Choose This 0.5mm Pb Dental X-Ray Apron
- High-attenuation shielding: 0.5mm Pb lead equivalence on the front panel – the level commonly specified for fluoroscopy, interventional work and staff with frequent exposure.
- Quick to put on: Sleeveless slip-over cut with crossed back straps – no buttons or ties.

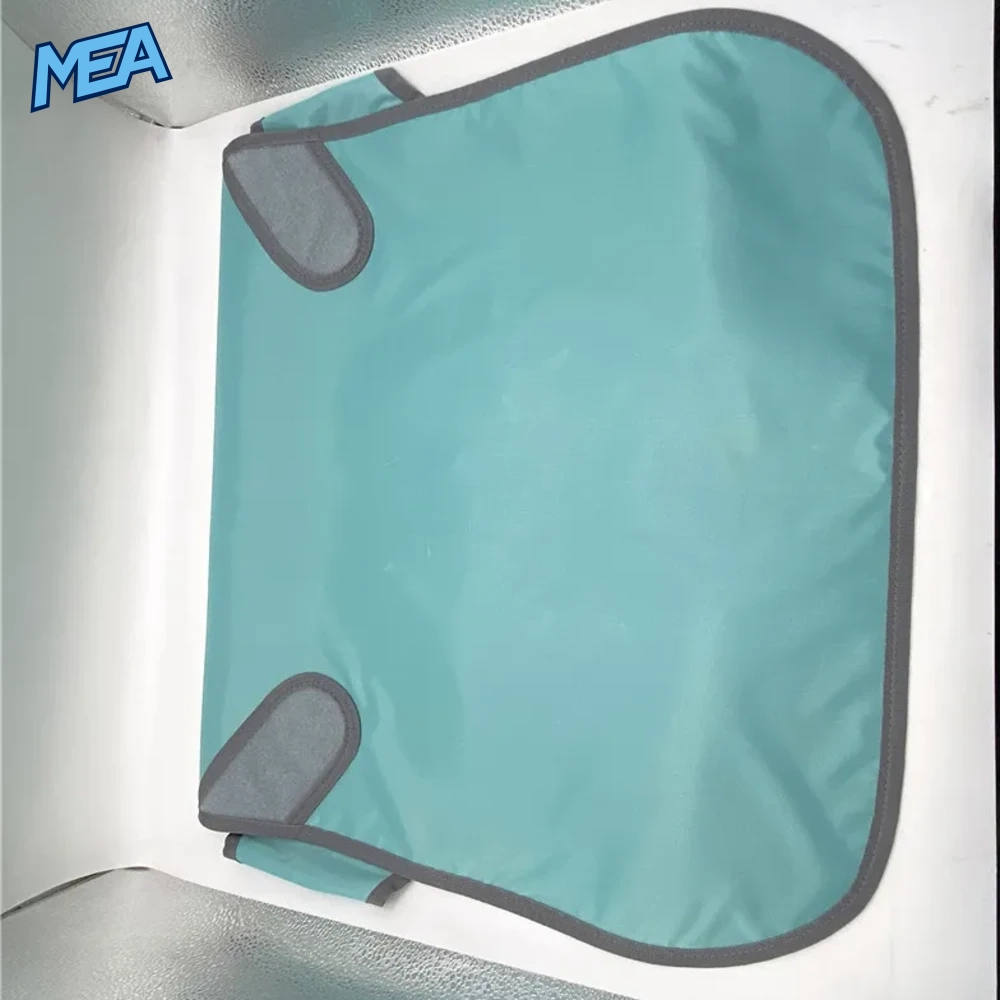

- Weight on the hips: Wide hook-and-loop waist belt pulls the apron close and transfers load from the shoulders.
- Hygienic finish: Smooth, wipe-clean outer fabric for fast disinfection between patients.
- Four sizes: S, M, L and XL to fit a wide range of staff and patients.
Key Features of the PA07 Lead Vest
0.5mm Pb Front Shielding Panel
- Lead-equivalent core rated at 0.5mm Pb across the chest, abdomen and upper thighs.
- Rated for X-ray tube voltages up to 100 kV (as marked on the garment label).
- Front-only protection – the back is open with crossed straps, so the wearer should face the X-ray source.
Comfortable Sleeveless Design
- Round neckline and open shoulders for freedom of arm movement during positioning and chairside work.

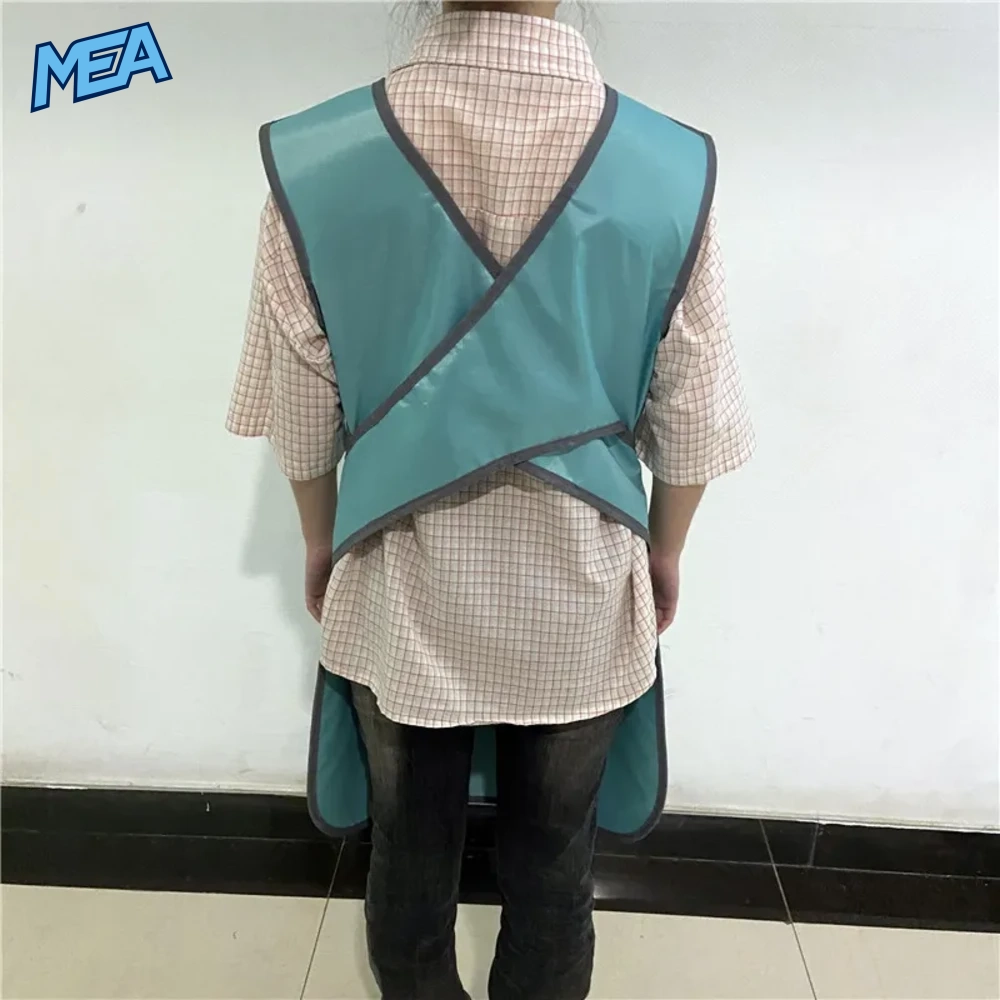

- Crossed back straps keep the apron stable without a heavy back panel.
- Side wings with hook-and-loop fastening close the apron firmly around the waist.
- Front patch pocket for pens, film holders or small items.
Light Blue Wipe-Clean Outer Fabric
- Calm light blue colour with contrasting grey binding suits clinical and dental environments.
- Surface can be wiped with a mild disinfectant between uses.
Specifications
| Specification | Details |
|---|---|
| Model Number | PA07 |
| Product Type | Sleeveless dental lead vest / X-ray protective apron (front protection) |
| Lead Equivalence (front) | 0.5mm Pb |
| Back Protection | None – open back with crossed straps |
| Rated X-Ray Tube Voltage | 100 kV |
| Colour | Light Blue with grey trim |
| Sizes | S, M, L, XL |
| Closure | Crossed back straps + hook-and-loop waist belt |
| 1 x front patch pocket | |
| Certification Marks | CE, ISO 9001 |
| Shipping Weight | Approx. 5.5 kg (packed) |
| Package Size | Approx. 67 × 35 × 10 cm |
| Condition | New |
| Package Contents | 1 x PA07 lead vest |
Size Guide
| Size | Approx. Length × Width | Suggested Wearer Height |
|---|---|---|
| S | 850 × 550 mm | 150–160 cm |
| M | 900 × 550 mm | 165–170 cm |
| L | 1000 × 600 mm | 170–180 cm |
| XL | Contact us for exact measurements | Taller or broader wearers |
Tip: if you are between sizes or have a broad build, choose the larger size a customer of 180 cm / 85 kg reported that size XL fits but feels snug.
Applications
- Dental clinics: Intraoral, handheld, panoramic and CBCT imaging.
- Hospital radiology: General radiography, mobile and DR X-ray.
- Fluoroscopy and interventional suites where 0.5mm Pb is specified.
- Veterinary practices: Staff holding or positioning animals during radiographs.
- Radiation laboratories and industrial X-ray inspection.
Note: A 0.5mm Pb apron is designed for diagnostic-energy X-ray scatter. It is not intended for high-energy gamma radiation and does not replace fixed shielding, distance and time controls in your radiation safety plan.
Care, Storage and Inspection
- Hang the vest on a dedicated apron hanger after use never fold or crease, as this can crack the shielding core.
- Wipe clean with a mild disinfectant; do not machine wash, soak or autoclave.
- Store away from heat, direct sunlight, humidity and harsh chemicals.
- Inspect regularly by touch and visual check, and replace if the shielding is cracked or damaged.
Frequently Asked Questions
What does 0.5mm Pb mean on a lead vest?
It means the shielding panel attenuates X-rays as effectively as a 0.5mm thick sheet of pure lead. 0.5mm Pb gives more protection than 0.25mm or 0.35mm Pb aprons and is the usual choice for frequent or higher-dose exposure.
Does the PA07 dental lead vest protect the back?
No. The PA07 is a front-protection apron with an open, crossed-strap back. Always face the X-ray source while wearing it. Choose a wrap-around vest-and-skirt set if you need back protection.
Which size should I choose?
S suits wearers about 150–160 cm tall, M about 165–170 cm and L about 170–180 cm. Choose XL for taller or broader wearers. Contact us for exact XL measurements before ordering.
Does this lead apron include a thyroid collar?
No. The vest has a round neckline without a collar. Add a separate thyroid shield if neck protection is required.
Is it suitable for dental patients as well as staff?
Yes. It can be worn by clinicians who remain in the room and draped on patients for intraoral and panoramic radiographs.
How do I clean a lead vest?
Wipe the outer fabric with a mild, non-abrasive disinfectant and let it dry on a hanger. Do not machine wash, soak, iron or autoclave.
Can it be used in veterinary clinics?
Yes. It protects veterinary staff who hold or position animals during radiography, provided they face the X-ray source.
