The Olympus RRC2054 battery charger is a dedicated SMBus charging dock and AC power adapter kit designed to recharge the RRC2054 battery pack used in Olympus and Innov-X Systems handheld XRF (X-ray fluorescence) alloy and metal analysers. Built around the RRC-SMB-MBC charging module, it supplies regulated, voltage-matched power so field technicians, PMI inspectors, and lab technicians can keep their handheld analyser charged and ready between scans.
This charger is an accessory, not the analyser itself. It recharges the RRC2054 SMBus lithium-ion battery pack that powers Olympus and Innov-X handheld XRF alloy analysers, including V2EL and V2EL-LT models. These handheld analysers are widely used for positive material identification (PMI), scrap metal sorting, precious metal verification, and alloy grading in the field or on the shop floor.
Specifications
| Attribute | Detail |
| Product Type | SMBus battery charging dock + AC power adapter |
| Fits These Battery | Olympus RRC2054 (SMBus lithium-ion battery pack) |

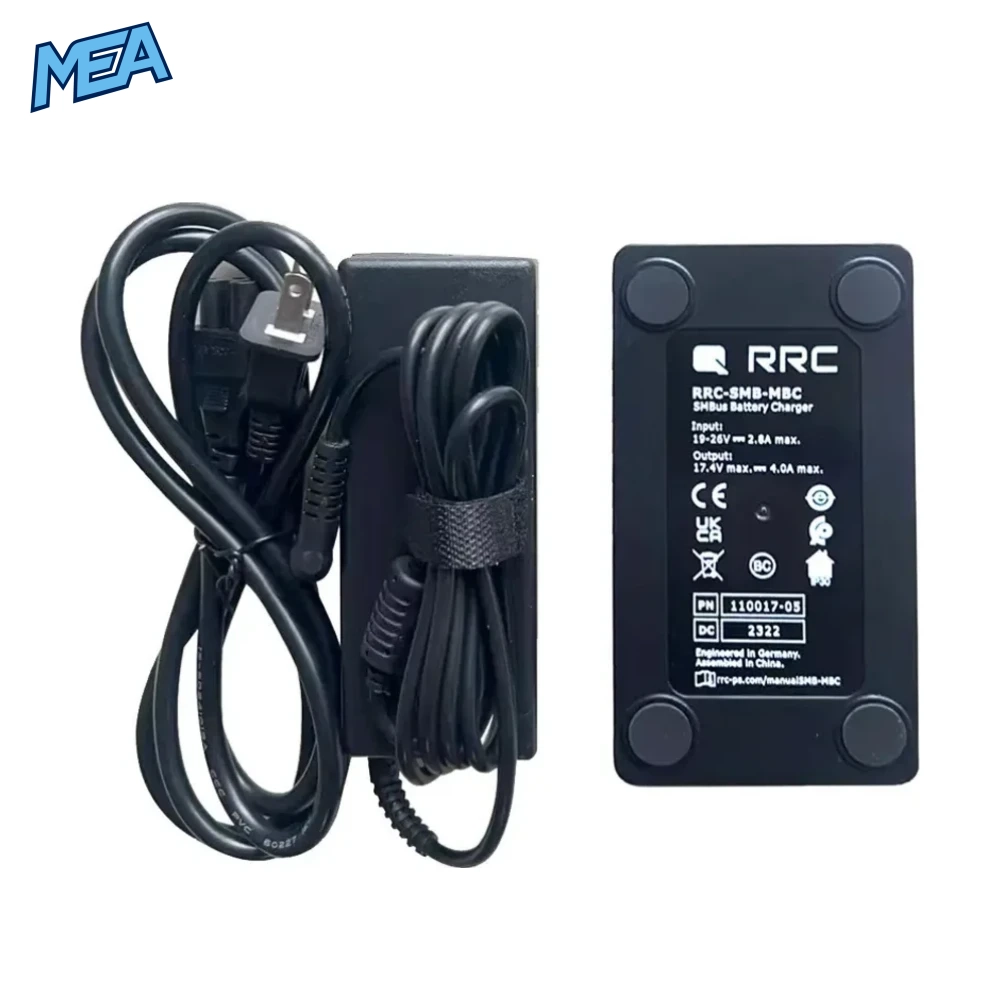

| Charger Module Model | RRC-SMB-MBC |
| Manufacturer Part Number | 110017-05 |
| Power Input | 19–26V DC, 2.8A max (via AC power adapter) |
| Charging Output | 17.4V DC max, 4.0A max |
| Connector Type | 5-pin SMBus dock contact |
| Compliance Marks | CE, UKCA |
| Condition | New |

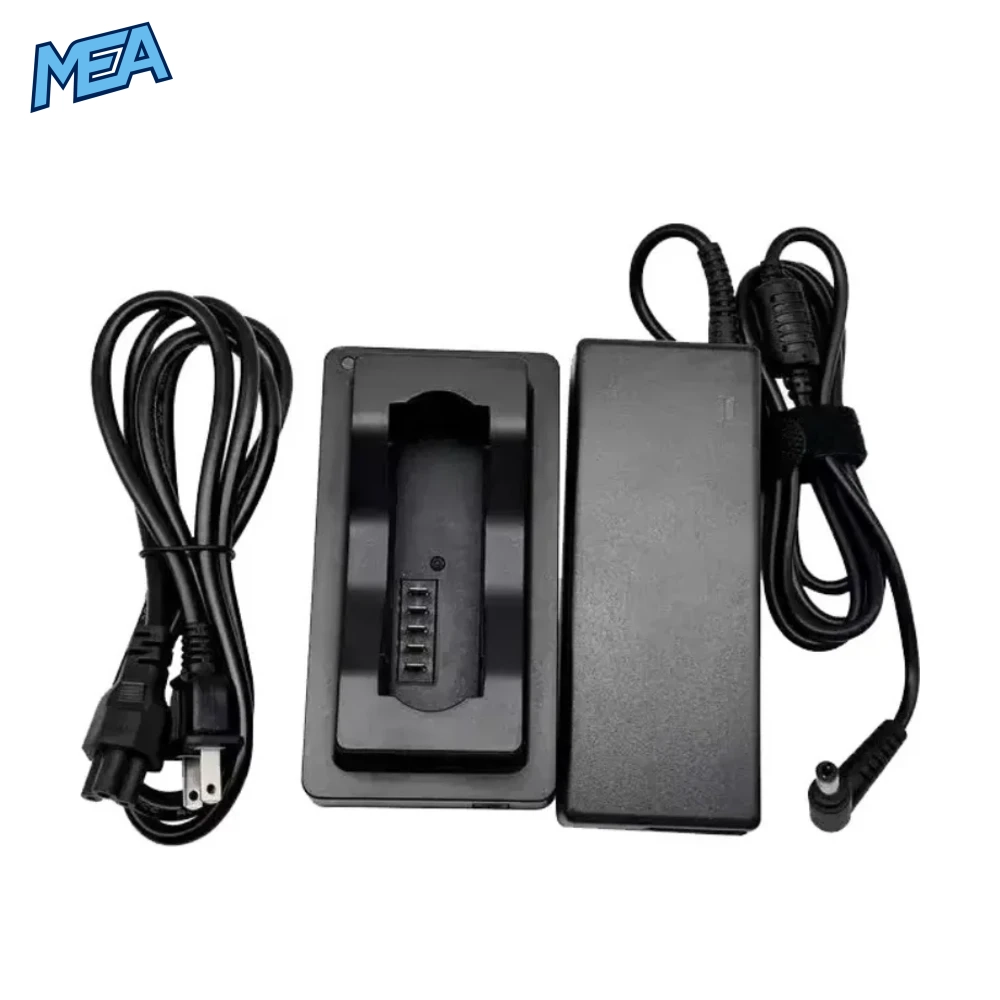

| Included Items | 1 x charging dock, 1 x AC-DC power adapter with mains cable |
| Fits These Models | Olympus / Innov-X handheld XRF alloy analysers using the RRC2054 battery (e.g., V2EL / V2EL-LT and related models) |
Key Features
- Purpose-matched charging dock: 5-pin SMBus contact cradle designed for the RRC2054 battery footprint.
- RRC-SMB-MBC charging module: regulates output to 17.4V DC / 4.0A max for safe lithium-ion charging.
- Wide-range power input: accepts 19–26V DC / 2.8A max from the included AC-DC power adapter.
- Compliance marked: CE and UKCA marks on the charging module.
- Compact two-piece kit: charging dock plus AC power adapter with mains cable, easy to pack for field service.
- Condition: Brand new.
Use Cases
- Positive Material Identification (PMI) in oil & gas, petrochemical, and power generation
- Scrap metal sorting and recycling
- Precious metal and alloy verification
- Manufacturing quality control and incoming inspection
- Keeping a spare battery charged for extended field or lab sessions
Why Choose This Charger
- Voltage-matched charging: output is regulated specifically for the RRC2054 battery’s charge profile, reducing the risk of under- or over-voltage damage.
- Minimises analyser downtime: keep a charged spare battery on hand so scanning work isn’t interrupted.
- Compact and field-ready: small enough to carry in a tool case alongside your analyser.
- Backed by Australian customer support from Medical Equipment Australia.
Frequently Asked Questions
What does the Olympus RRC2054 battery charger include?
This kit includes one SMBus charging dock designed for the RRC2054 battery and one AC-DC power adapter with mains cable. The RRC2054 battery pack itself is not included; this listing is for the charging accessory only.
Which analysers is the RRC2054 charger fits?
The RRC2054 battery is used in Olympus and Innov-X Systems handheld XRF alloy analysers, including V2EL and V2EL-LT models. Please check your analyser’s battery compartment and model number to confirm the RRC2054 battery is the correct fit before ordering.
What are the input and output specifications of this charger?
The RRC-SMB-MBC charging module accepts 19–26V DC at up to 2.8A from the included power adapter and outputs up to 17.4V DC at a maximum of 4.0A to the battery.
Is the charger new or refurbished?
This charger is supplied brand new.
