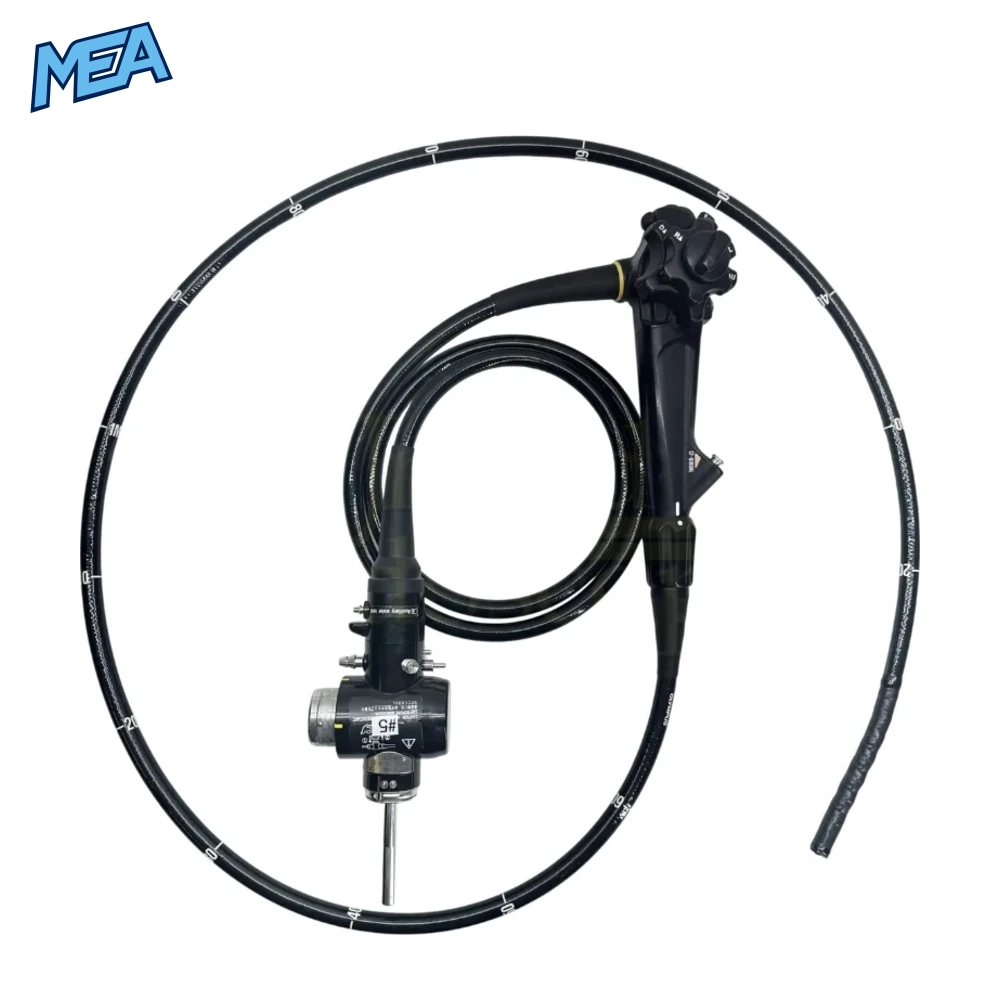

The Olympus CF-Q180AL Colonoscope is a high-resolution video colonoscope from the EVIS EXERA II platform, designed for detailed examination of the colon. It combines wide-angle visualisation, variable stiffness technology, auxiliary water functionality, a 3.7 mm instrument channel, and multidirectional tip angulation to support diagnostic and therapeutic gastrointestinal endoscopy.
Features: Olympus CF-Q180AL Video Colonoscope
The CF-Q180AL/I colonovideoscope is designed to provide clear endoscopic visualisation while giving clinicians greater control during colonoscopic procedures. Its forward-viewing design and wide field of view support observation of the colonic mucosa, while the insertion tube and angulation capabilities are engineered for controlled navigation.
Key features include:
- High-resolution, full-screen endoscopic imaging
- Forward-viewing colonoscope design
- Wide-angle field of view
- NBI functionality
- Auxiliary water jet function for mucosal cleaning
- innoflexâ„¢ Variable Stiffness technology
- 3.7 mm biopsy/instrument channel

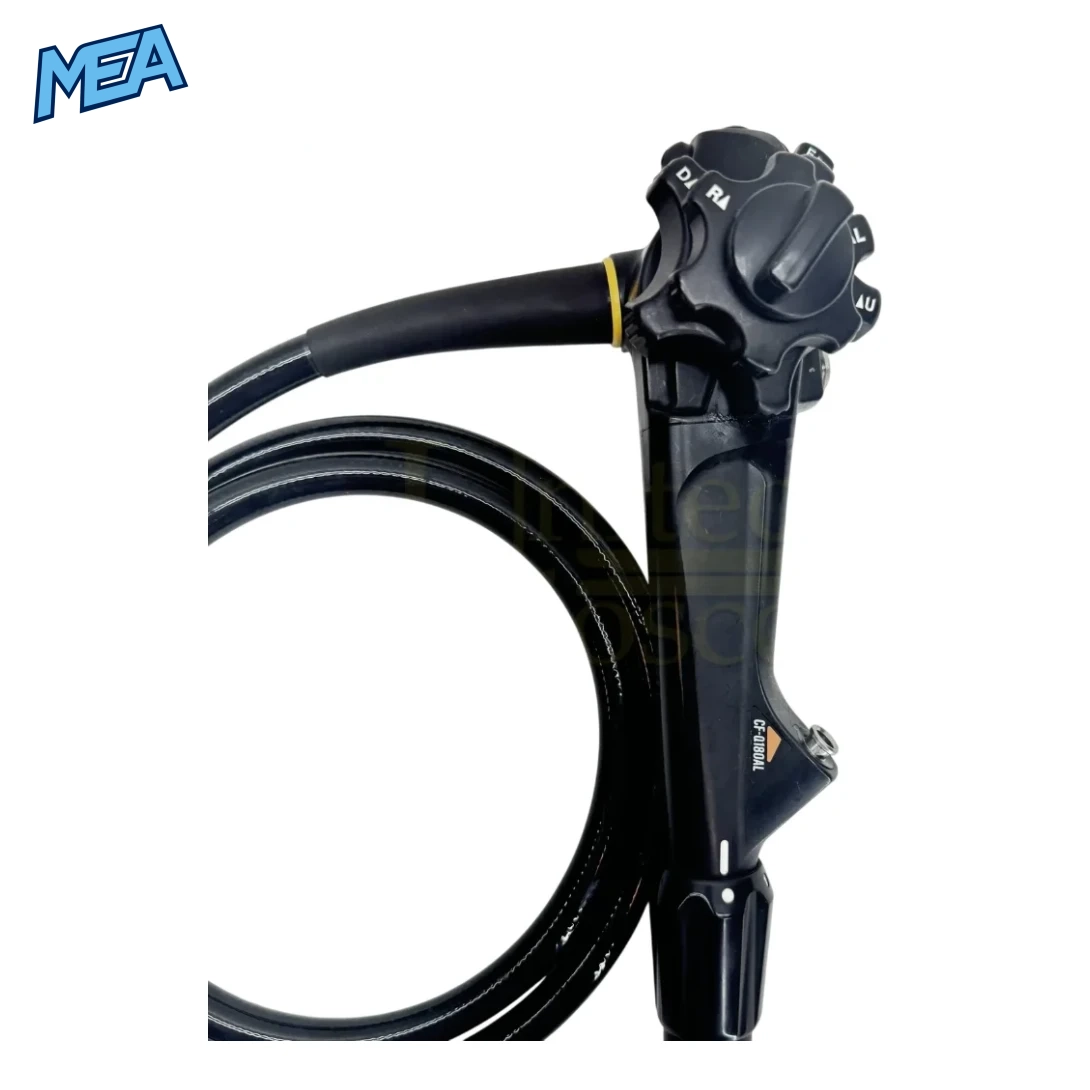

- 180° upward and downward angulation
- 160° right and left angulation

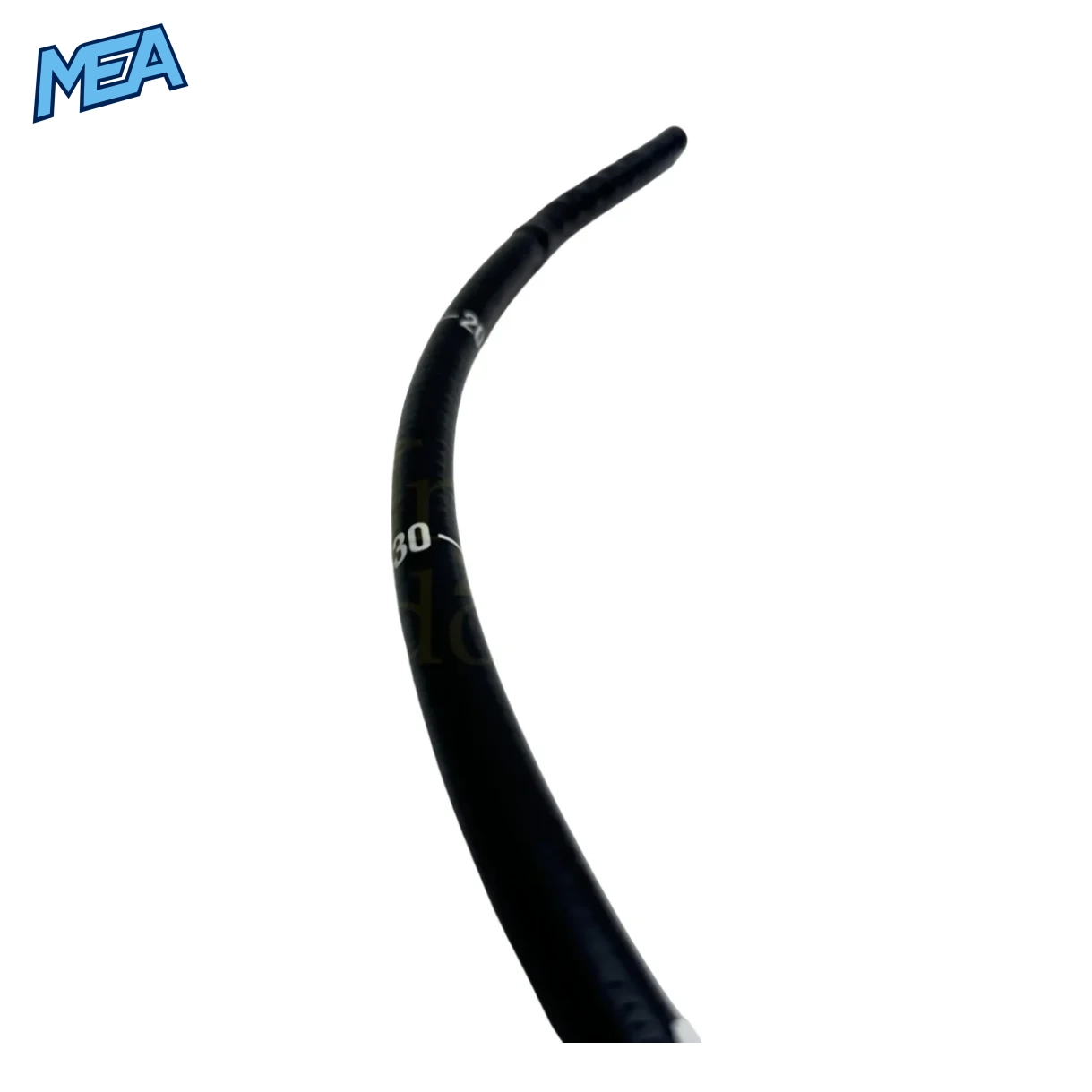

- 12.8 mm insertion tube diameter
- Forward water delivery capability
- Long working length for colonoscopic procedures
High-Resolution Colonoscopy Imaging and Wide-Angle Observation
The Olympus CF-Q180AL video colonoscope is designed to deliver high-resolution imaging for detailed observation during gastrointestinal examinations. Its wide-angle viewing configuration helps provide a broad visual perspective of the examination area.
The forward-viewing optical design supports direct observation during colonoscopy, while the full-screen imaging capability is intended to provide clear visualisation when used with an appropriate endoscopy video system.
NBI Functionality
The CF-Q180AL supports Narrow Band Imaging (NBI) functionality when used within an appropriate Olympus endoscopy system. NBI technology is designed to enhance visualisation of mucosal surface structures and vascular patterns.
This functionality may assist clinicians in obtaining enhanced visual information during endoscopic observation.
Variable Stiffness Technology for Improved Scope Handling
The Olympus CF-Q180AL incorporates innoflexâ„¢ Variable Stiffness technology, allowing the flexibility of the insertion tube to be adjusted according to procedural requirements.
This feature helps provide greater control when navigating different sections of the colon.
Key Handling Advantages
- Adjustable insertion tube stiffness
- Supports controlled scope advancement
- Designed to adapt to varying anatomical contours
- Helps balance flexibility and procedural control
Auxiliary Water Jet Function for Mucosal Cleaning
The auxiliary water function is designed to facilitate cleaning of mucus, fluid, or other material from the observation area during a procedure.
When used with the appropriate flushing system, the water jet function can help maintain a clearer field of view without unnecessary interruption to the examination workflow.
3.7 mm Instrument Channel for Endoscopic Devices
The Olympus CF-Q180AL features a 3.7 mm diameter instrument channel, providing access for a range of suitable endoscopic instruments while maintaining suction capability.
This channel configuration supports common diagnostic and therapeutic colonoscopy applications, depending on the instruments and system used.
Instrument Channel Benefits
- 3.7 mm channel diameter
- Supports the use of suitable endoscopic accessories
- Designed to maintain procedural versatility
- Supports suction during examination and intervention
Specifications: Olympus CF-Q180AL Colonoscope
| Specification | Details |
| Brand | Olympus |
| Product Type | Video Colonoscope / Colonovideoscope |
| Model | CF-Q180AL / CF-Q180AL/I |
| Series | EVIS EXERA II |
| Direction of View | Forward Viewing |
| Field of View | 170°* |
| Depth of Field | 3–100 mm |
| Distal End Outer Diameter | 13.2 mm |
| Insertion Tube Outer Diameter | 12.8 mm |
| Instrument / Biopsy Channel | 3.7 mm |
| Working Length | 1330 mm / 133 cm |
| Maximum Angulation Up | 180° |
| Maximum Angulation Down | 180° |
| Maximum Angulation Right | 160° |
| Maximum Angulation Left | 160° |
| Imaging Features | High-resolution, full-screen imaging |
| Enhanced Imaging | NBI functionality |
| Water Function | Auxiliary water jet |
| Insertion Technology | innoflexâ„¢ Variable Stiffness |
| Video Processor Fitment | CV-180 and CV-190 |
Applications and Use Cases
The Olympus CF-Q180AL Colonoscope is intended for use in professional clinical and healthcare environments for colonoscopic examination and related endoscopic procedures.
Typical applications may include:
- Colonoscopic examination and visualisation
- Observation of the colonic mucosa
- Diagnostic gastrointestinal endoscopy
- Procedures requiring endoscopic instrument access
- Clinical environments using supported Olympus EVIS endoscopy systems
The specific clinical use of the device should always follow the manufacturer’s instructions for use and applicable medical regulations.
Why Choose the Olympus CF-Q180AL Video Colonoscope?
The CF-Q180AL combines several features important to professional endoscopy workflows:
- Wide-angle visualisation for broad observation
- High-resolution imaging for detailed endoscopic viewing
- NBI capability for enhanced visualisation when supported by the connected system
- Variable stiffness technology for adjustable insertion tube handling
- Auxiliary water function for cleaning the observation area
- 3.7 mm working channel for suitable endoscopic instruments
- Four-way angulation for controlled distal-end positioning
- EVIS EXERA II platform integration
Frequently Asked Questions
What is the Olympus CF-Q180AL?
The Olympus CF-Q180AL is a forward-viewing video colonoscope, also referred to as a colonovideoscope, from the Olympus EVIS EXERA II endoscopy platform. It is designed for professional colonoscopic examination and supports high-resolution imaging, variable stiffness, an auxiliary water function, and a 3.7 mm instrument channel.
What is the working length of the Olympus CF-Q180AL?
The supplied specifications identify an insertion or working length of 1330 mm (133 cm) and a total length of approximately 1680 mm (168 cm).
What is the diameter of the CF-Q180AL insertion tube?
The Olympus CF-Q180AL has a stated 12.8 mm insertion tube outer diameter. The distal-end outer diameter is listed as 13.2 mm.
What is the instrument channel size?
The Olympus CF-Q180AL features a 3.7 mm instrument or biopsy channel.
Does the Olympus CF-Q180AL have variable stiffness?
Yes. The CF-Q180AL incorporates innoflexâ„¢ Variable Stiffness technology, allowing adjustment of insertion tube flexibility during a procedure.
Does the CF-Q180AL have an auxiliary water jet?
Yes. The CF-Q180AL/I includes an auxiliary water function designed to support cleaning of the observation area when used with the appropriate flushing system.
Is the Olympus CF-Q180AL suitable for NBI?
The CF-Q180AL is associated with NBI functionality when used as part of an appropriate Olympus endoscopy system. Buyers should verify system configuration and functionality for the specific equipment being purchased.
