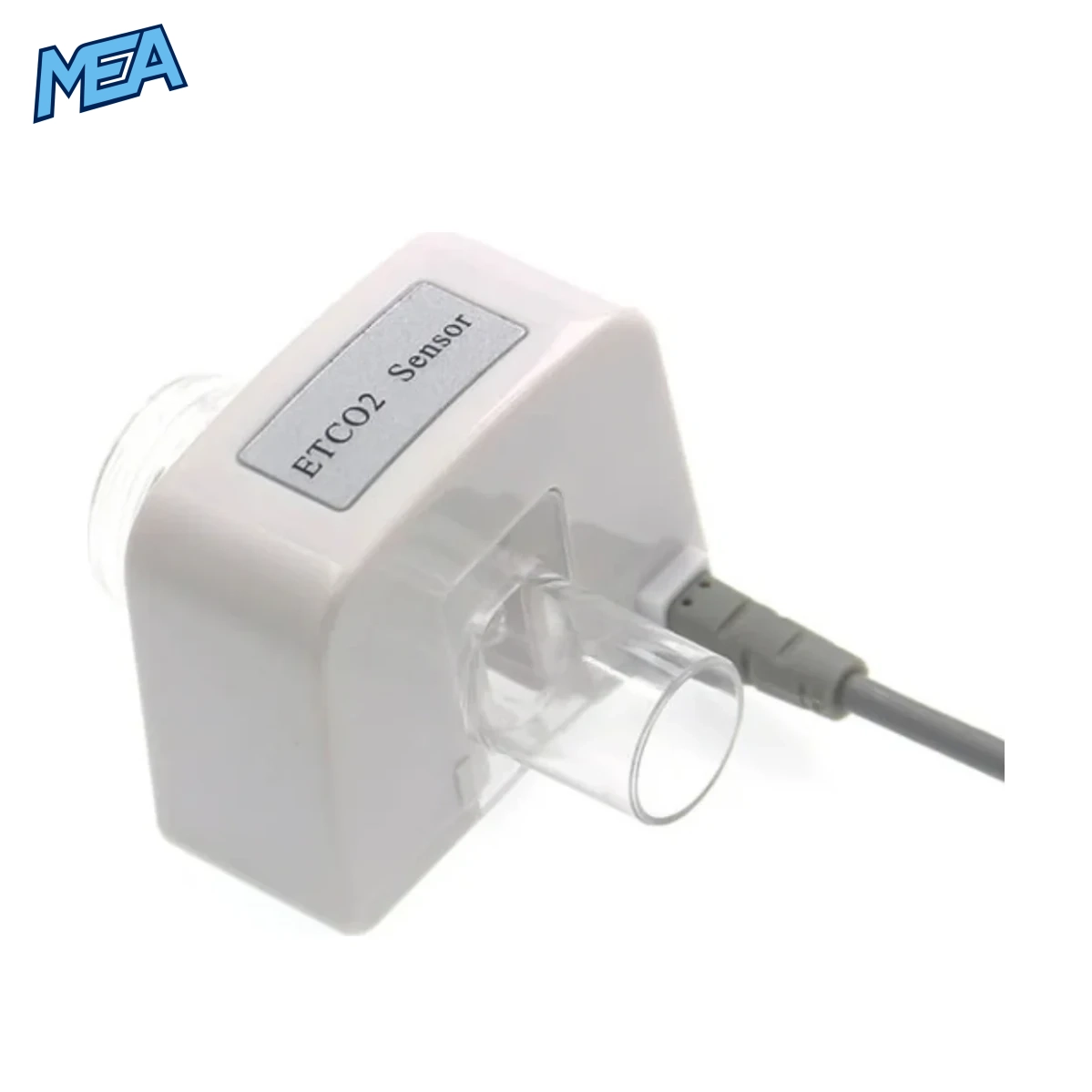

The Mindray ETCO2 sensor module is engineered specifically for use with Mindray BeneView T5 and T8 patient monitors. It provides continuous respiratory monitoring with rapid response times and highly accurate CO2 waveform analysis, helping healthcare professionals make informed clinical decisions during anesthesia, emergency treatment, patient transport, and intensive care monitoring.
Designed for durability and medical-grade performance, this ETCO2 module supports both reusable and single-patient-use airway adapters while maintaining exceptional measurement stability over extended operating periods.
Whether used in ICU monitoring systems, operating rooms, ambulances, or recovery units, this capnography sensor ensures dependable respiratory monitoring with minimal maintenance requirements.
Key Features of the Mindray ETCO2 Sensor Module
Fast and Accurate Capnography Monitoring
This ETCO2 sensor uses dual-wavelength Non-Dispersive Infrared (NDIR) technology to provide highly accurate carbon dioxide measurements without moving parts. The sensor delivers rapid waveform display and dependable readings for critical patient monitoring applications.
Real-Time CO2 Measurement
The module continuously measures:
- End-tidal CO2 (EtCO2)
- Inspired CO2
- Respiratory rate
- CO2 waveform data
- Gas concentration levels
This enables clinicians to monitor ventilation effectiveness and respiratory conditions in real time.
Rapid Initialization and Response Time
The capnogram appears in less than 5 seconds, allowing medical professionals to begin respiratory monitoring almost immediately after connection.
Benefits include:
- Faster patient assessment
- Reduced monitoring delays
- Improved emergency response efficiency
- Reliable ventilation confirmation
Fits Adult and Pediatric Applications
The sensor supports both adult and infant airway adapters, making it suitable for a wide range of patient monitoring environments.
Supported airway adapter types include:
- Adult reusable adapters
- Adult disposable adapters
- Infant reusable adapters
- Infant disposable adapters
Low Maintenance Operation
No routine user calibration is required, reducing maintenance time and simplifying operation in busy clinical settings.
Benefits of Using the Mindray ETCO2 Sensor
Reliable Respiratory Monitoring
Healthcare professionals rely on accurate capnography data for patient safety. This sensor provides stable and consistent measurements even during long-term monitoring.
Enhanced Patient Safety
Continuous CO2 monitoring helps detect:
- Airway obstruction
- Hypoventilation
- Hyperventilation
- Accidental extubation
- Respiratory depression
- Ventilation failure
Ideal for Critical Care Environments
The sensor is designed for demanding healthcare environments including:
- Intensive Care Units (ICU)
- Emergency rooms
- Operating theaters
- Ambulances
- Post-anesthesia care units
- Surgical recovery rooms
High-Speed Sampling Frequency
With a 100 Hz sampling frequency, the sensor delivers fast waveform updates and accurate respiratory trend monitoring.
Durable Splash-Proof Design
The sensor head features IPX4 splash-proof protection, improving reliability in clinical environments where fluid exposure may occur.
Specifications: Mindray ETCO2 Sensor Module
| Specification | Details |
| Product Name | Mindray ETCO2 Sensor Module |
| supported Monitors | Mindray BeneView T5 / T8 |
| Category | EtCO2 Monitoring |
| Technology | Non-Dispersive Infrared (NDIR) |
| Initialization Time | Less than 5 seconds |
| CO2 Measurement Range | 0 – 114 mmHg |
| CO2 Resolution | 0.1 mmHg to 59 mmHg |
| CO2 Accuracy | ±2 mmHg (0–40 mmHg) |
| Respiration Rate Range | 2 to 150 BPM |
| Respiration Accuracy | ±1 breath |
| Sampling Frequency | 100 Hz |
| Voltage Requirement | 5.0 VDC ±5% |
| Power Consumption | 1.2W typical |
| Maximum Power Consumption | 1.8W during warm-up |
| Interface | RS232, bi-directional |
| Baud Rate | 19200 |
| Connector Type | Redel 8-pin connector |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -40°C to 70°C |
| Humidity Range | 10% to 90% RH |
| Water Resistance | IPX4 Splash-Proof |
| Latex-Free | Yes |
| Sterile | No |
| Warranty | 3 Months |
| Weight | 0.8 lb |
| Packaging | Bag Packaging |
| Included Items | 1 x ETCO2 Sensor |
Mainstream ETCO2 Sensor Performance Details
Accurate CO2 Monitoring Range
The sensor measures carbon dioxide concentrations within:
- 0–114 mmHg
- 0–15%
- 0–15.2 kPa
This wide measurement range supports both standard and advanced respiratory monitoring requirements.
High Accuracy Readings
CO2 Accuracy Levels
| CO2 Range | Accuracy |
| 0–40 mmHg | ±2 mmHg |
| 41–76 mmHg | ±5% of reading |
| 77–114 mmHg | ±8% of reading |
The sensor maintains consistent measurement precision across varying respiratory conditions.
Excellent Stability Performance
Short-Term Stability
Drift over four hours does not exceed 1 mmHg maximum.
Long-Term Stability
Accuracy specifications are maintained for up to 120 hours of operation.
Connectivity and Integration Features
RS232 Data Interface
The Mindray ETCO2 module supports bi-directional RS232 communication with a standard 19200 baud rate configuration.
Data Output Includes:
- CO2 gas concentration
- End-tidal CO2 values
- Inspired CO2 readings
- Respiratory rate information
- Pressure-compensated gas data

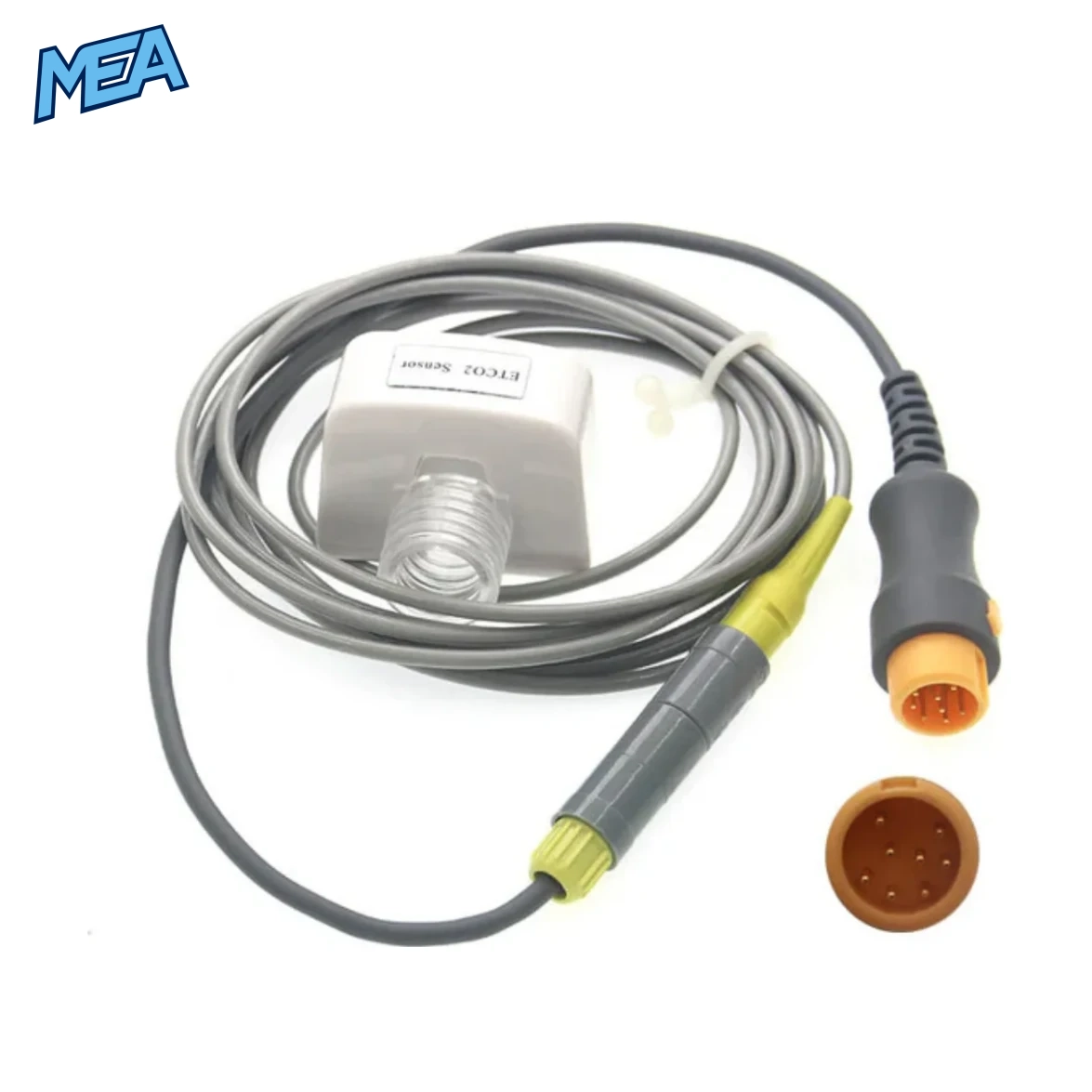

Redel 8-Pin Connector Configuration
The module uses a medical-grade Redel 8-pin connector for stable and secure integration with supported Mindray patient monitoring systems.
Applications
Intensive Care Units (ICU)
Provides continuous respiratory monitoring for critically ill patients.
Operating Rooms
Helps anesthesiologists monitor ventilation during surgical procedures.
Emergency Medical Services
Ideal for ambulance and transport monitoring applications.
Recovery and Post-Anesthesia Monitoring
Assists in detecting respiratory complications during patient recovery.
Ventilator Monitoring
Supports respiratory monitoring in mechanically ventilated patients.
Why Choose This Mindray ETCO2 Sensor Module?
Clinical-Grade Accuracy
Designed to deliver dependable respiratory measurements for professional healthcare environments.
Seamless Fitment
Fully fits:
- Mindray BeneView T5
- Mindray BeneView T8
Easy Installation
Plug-and-play integration minimises setup time.
Medical Certifications
Manufactured according to international medical device standards including:
- CE
- ISO13485
- TUV
- RoHS
Durable Construction
Built for long-term medical use with reliable internal components and splash-proof protection.
Package Contents
Your package includes:
- 1 × Mindray ETCO2 Sensor Module
- Secure protective packaging
Frequently Asked Questions
What is the Mindray ETCO2 Sensor Module used for?
The Mindray ETCO2 Sensor Module is used to monitor end-tidal carbon dioxide, respiratory rate, and inspired CO2 in patients during anesthesia, ICU care, emergency treatment, and ventilation monitoring.
Does this ETCO2 sensor fit Mindray BeneView monitors?
Yes, this sensor module is specifically designed for use with Mindray BeneView T5 and T8 patient monitors.
What technology does the sensor use?
The sensor uses Non-Dispersive Infrared (NDIR) dual-wavelength technology for accurate CO2 measurement.
Does the ETCO2 sensor require routine calibration?
No, routine user calibration is not required. Only airway adapter zeroing may be needed when changing adapters.
Can this sensor be used for pediatric patients?
Yes, the module supports both adult and infant airway adapters for pediatric and neonatal monitoring applications.
What is the response time of the ETCO2 sensor?
The capnogram is displayed in less than 5 seconds, with full specifications available within approximately 2 minutes.
Is the sensor waterproof?
The sensor head is rated IPX4 splash-proof, which helps protect against fluid splashes in clinical environments.
What respiratory rate range does the module support?
The module supports respiratory rate monitoring from 2 to 150 breaths per minute (BPM).
What comes inside the package?
The package includes one Mindray ETCO2 Sensor Module packed securely in protective bag packaging.
Order the Mindray ETCO2 Sensor Module Today
Upgrade your respiratory monitoring system with a reliable and clinically accurate Mindray ETCO2 Sensor Module for BeneView T5/T8 monitors.
Designed for fast response, dependable capnography performance, and seamless integration, this ETCO2 monitoring solution is ideal for hospitals, emergency care, ICU monitoring, and surgical applications.
Its advanced NDIR technology, rapid waveform display, accurate respiratory measurements, and durable construction make it an essential component for professional patient monitoring systems.
