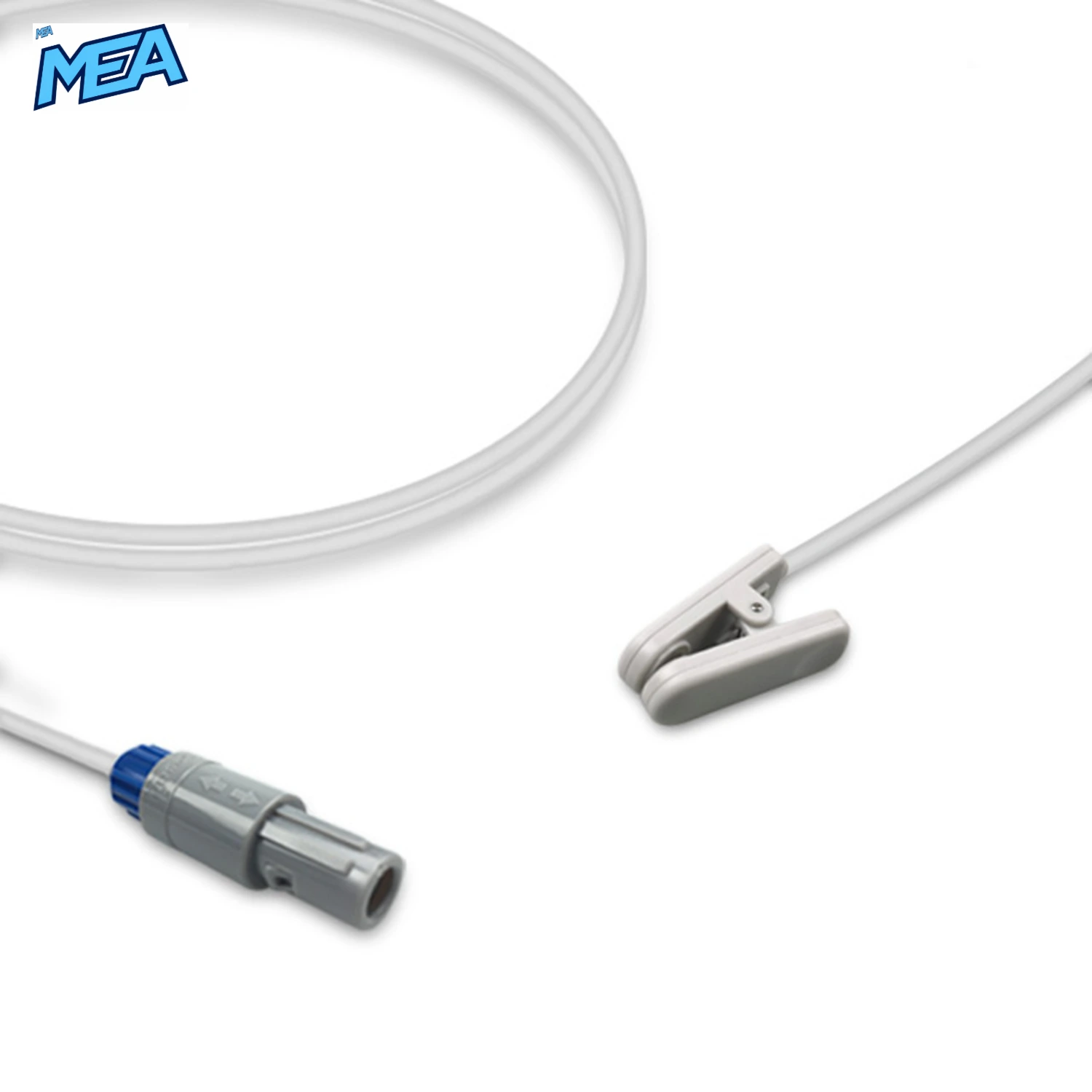

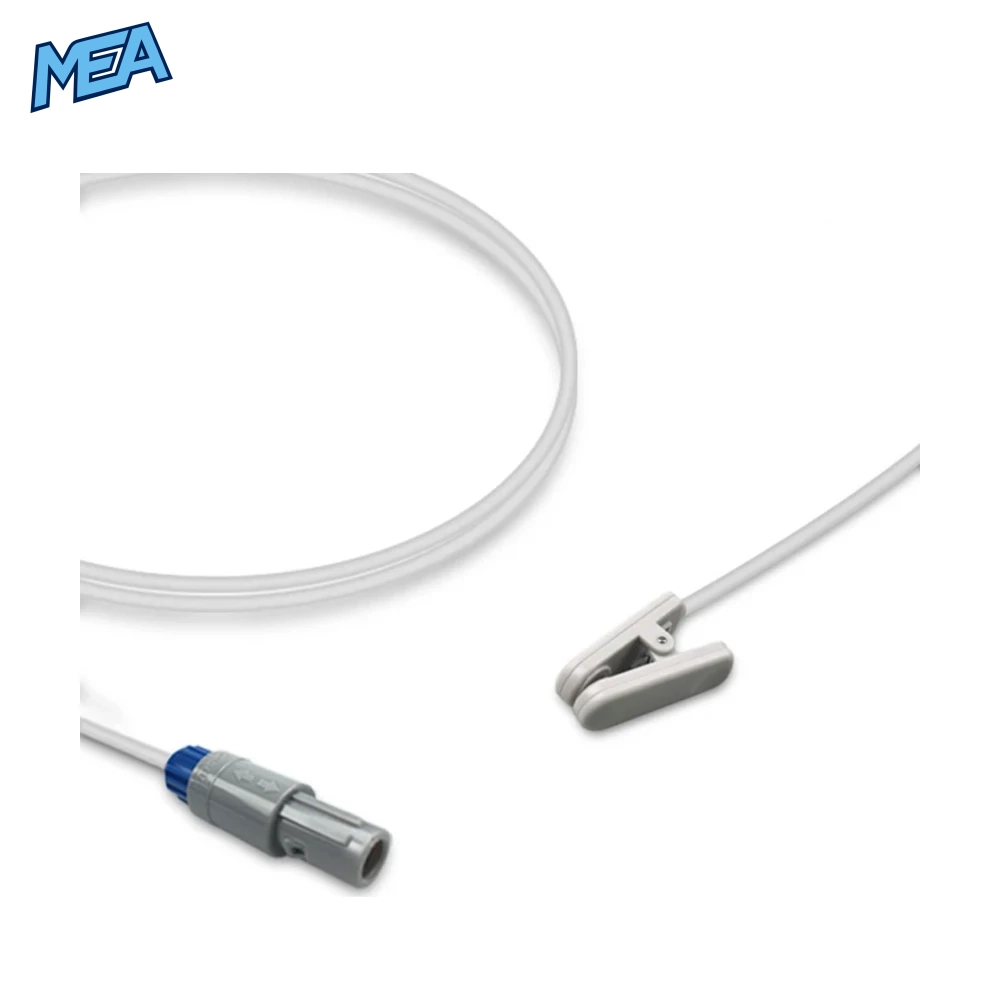

The Mindray Adult Ear Clip SpO2 Sensor 3.0m is a reusable pulse oximetry probe that clips onto an adult patient’s earlobe to measure oxygen saturation (SpO2) and pulse rate on Mindray patient monitors and a wide range of other monitoring platforms.
It carries a 3.0 m (9.8 ft) cable and a 6-pin round push-pull Mindray-style connector, and is built to the Unimed U910-29 reference specifications.
Why Choose This Mindray Ear Clip SpO2 Sensor?
- Earlobe monitoring site ideal when fingers are cold, poorly perfused, injured, or needed free for treatment.
- Long 3.0 m cable extra reach from bedside or transport monitor to the patient, reducing cable strain.
- Reusable design cleanable between patients for lower cost per use than disposable probes.
- Lightweight spring clip gentle, secure grip on the earlobe for spot checks and continuous monitoring.
- Wide monitor coverage works with Mindray, Datascope, Edan and many other monitor families (see list below).
- manufactured to recognised medical device quality standards.
Key Features of the Reusable Adult Ear SpO2 Probe
Ear Clip Sensor Head
The compact clip holds the LED emitter and photodetector on opposite sides of the earlobe, giving a stable transmission path for reliable SpO2 readings in adult patients.

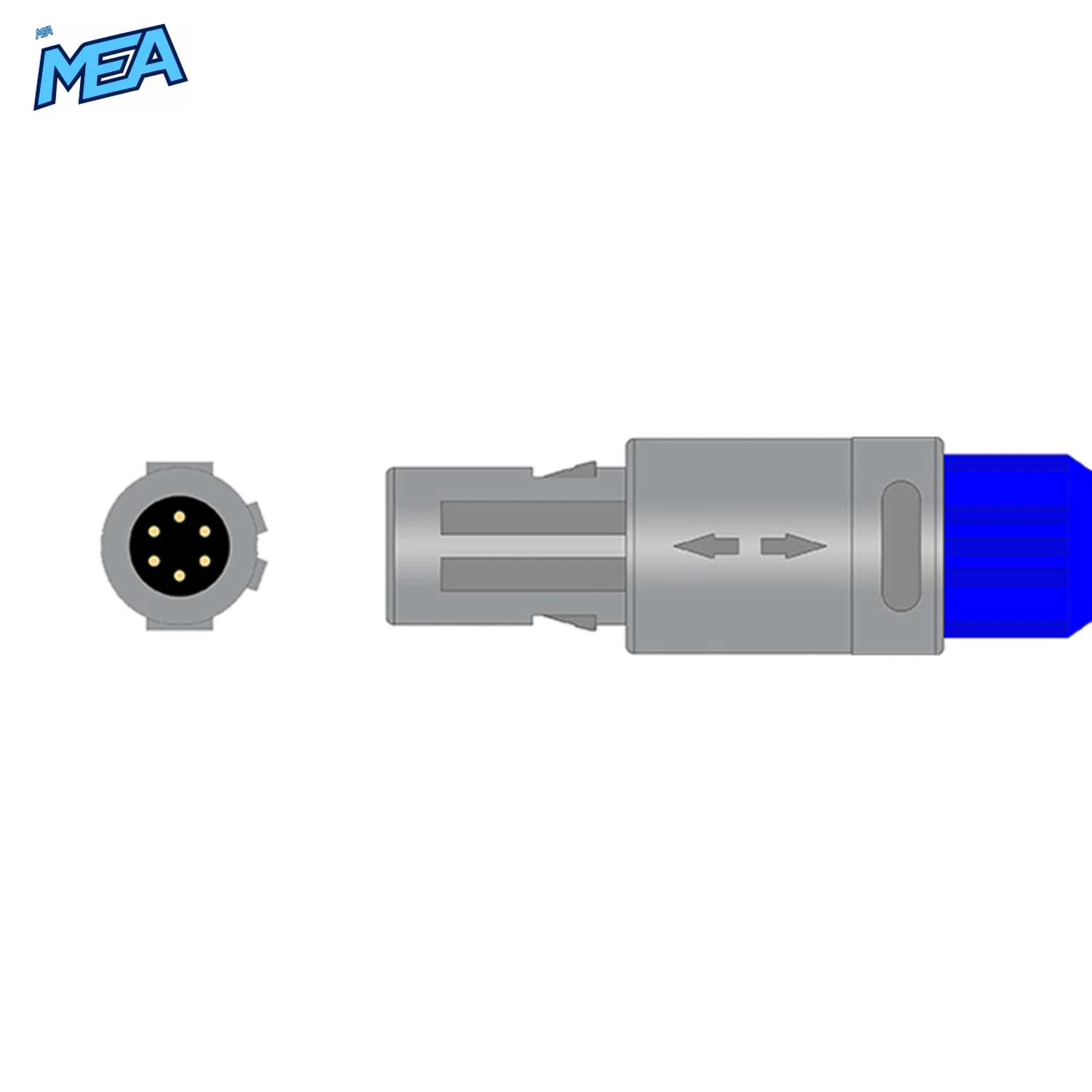

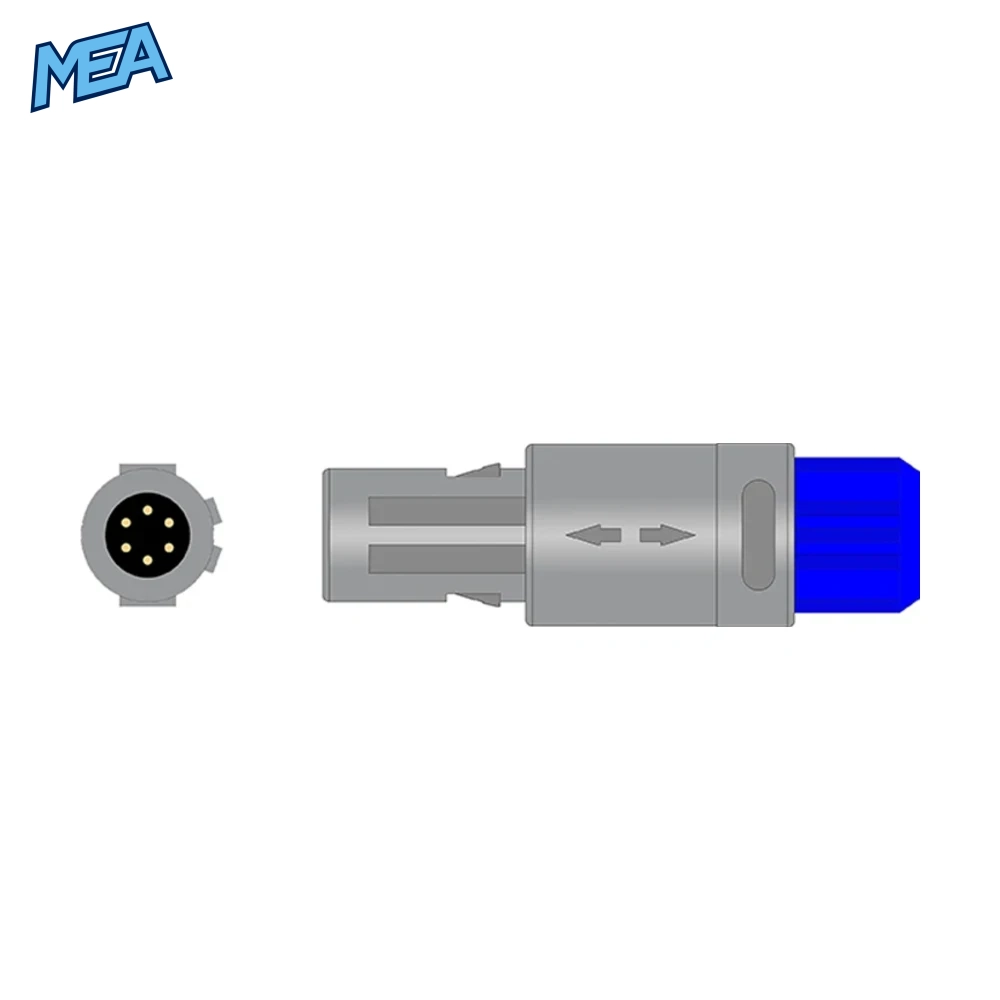

6-Pin Mindray-Style Round Connector
A 6-pin round push-pull connector plugs directly into the SpO2 port of supported Mindray monitors – no adapter cable is needed on those units.
Flexible Medical-Grade Cable
The soft, light-grey 3.0 m cable resists kinking and wipes clean easily, suiting busy wards, emergency rooms and theatres.
Specifications : Mindray Adult Ear Clip SpO2 Sensor
| Product | Adult Ear Clip SpO2 Sensor (for Mindray monitors) |
|---|---|
| Reference Number | Unimed U910-29 |
| SKU | MND-ADULT-SPO2-EC-6P-3M |
| Condition | New |
| Patient Size | Adult |
| Sensor Type | Ear Clip |
| Cable Length | 3.0 m (9.8 ft) |
| Connector | 6-pin round push-pull, Mindray style |
| Lifecycle | Reusable |
| Unit | 1 piece per bag |
Cross-Reference
| Brand | Reference Number |
|---|---|
| Unimed | U910-29 |
| Mindray | Adult ear clip SpO2 sensor, 3.0 m |
Works With These Monitors
Built to the reference specifications for the following equipment. Always confirm your monitor model and SpO2 connector before ordering.
- Mindray: Accutorr V, Accutorr V with Nellcor Option, DPM 3 / DPM 4 / DPM 5 with Nellcor Option, Duo, Trio, MEC 1000, MEC 1200, MEC 2000 (standard and with Nellcor Option), Passport V (standard and with Nellcor Option), PM 5000 with Nellcor Option, PM 6000 with Nellcor Option, PM 7000, PM 7000 with Nellcor Option, PM 7000 Standard with Nellcor Option, PM 8000, PM 8000 with Nellcor Option, PM 8000 Express with Nellcor Option, PM 9000, PM 9000 with Nellcor Option, PM 9000 Express with Nellcor Option, VS-800, VS 800 with Nellcor Option
- Datascope: 6201, 809B, DPM1, DPM2, DPM3, DPM4, DPM5, MEC 100, MEC 200, Passport XG, PM 600, PM 6000 (New), PM 9000 Express, VS 800, VS 900
- Edan: elite V5, elite V8, F9 / F9 Express with Nellcor option, iM3, iM8, iM8A, iM8B, iM9, iM9A, iM20, iM50, iM60, iM70, iM80 (standard, with Nellcor option, VET with Nellcor option, and iM80 without Nellcor OxiMax technology), M3 with Nellcor option, M3A, M3B, M8, M8A, M8B, M9, M9A, M50, M80 (standard and with Nellcor option)
- Advanced Instrumentations: PM-2000A Pro, PM1000F
- ARI: 800B
- CardioTech: GT-900
- Carewell: CPM-9000T
- Contec: CMS 9000
- Creative: PC9000, UP-6000
- Draeger: Vista 120
- Kontron: 7138, 7840, 7845
- Medec: M-1000, M-1100, MEDEC-1000
- Philips: M3
- Sonolife: SmartWave 7
- Venni: VI-3510P, VI-8410P
- Yonker: YK8000c
Typical Use Cases
- ICU, CCU and high-dependency units needing continuous adult SpO2 monitoring
- Emergency departments and ambulance transfers where finger sites are unsuitable
- Operating theatres and recovery (PACU) when hands are tucked or inaccessible
- Patients with poor peripheral perfusion, cold extremities, tremor or nail polish
- Stress testing, sleep studies and general ward spot checks
- Hospital biomedical departments keeping spare Mindray SpO2 probes in stock
Care and Cleaning
- Disconnect the sensor from the monitor before cleaning.
- Wipe the clip and cable with a soft cloth dampened with 70% isopropyl alcohol or a mild hospital disinfectant.
- Do not immerse, autoclave or steam sterilise the sensor.
- Allow to dry fully before reuse and inspect the cable and clip for damage.
- Reposition the clip regularly during long-term monitoring to protect the skin.
Frequently Asked Questions
What is a Mindray ear clip SpO2 sensor used for?
It measures blood oxygen saturation and pulse rate from the adult earlobe, providing an alternative monitoring site when finger sensors give weak or unreliable signals.
Which Mindray monitors does this sensor work with?
It works with Mindray PM 7000, PM 8000, PM 9000, MEC 1000/1200/2000, Passport V, Accutorr V, VS-800, Duo and Trio, plus their Nellcor Option versions listed above.
How long is the cable?
The cable is 3.0 metres (approximately 9.8 feet) long.
Is this ear clip SpO2 sensor reusable?
Yes. It is a reusable sensor that can be cleaned and disinfected between patients following your facility’s protocol.
Can I use it on children or neonates?
No. This probe is designed for adult earlobes. For smaller patients choose a pediatric or neonatal SpO2 sensor.
Do I need an adapter cable?
No adapter is needed on Mindray monitors with the matching round SpO2 port. Some other monitor brands may require the appropriate SpO2 extension cable check your monitor’s connector first.
What is the cross-reference number?
This sensor cross-references to Unimed U910-29.
Is the product new?
Yes, every unit is supplied brand new in its original bag.
