The Enovatemed LE4218 LigaSure Vessel Sealing Veterinary Instrument is a single-use advanced bipolar electrosurgical device designed for vessel sealing, tissue fusion, and surgical cutting in both veterinary and human procedures. Featuring a large curved jaw, ergonomic pistol-style handle, and 180° shaft rotation, the instrument enables precise coagulation and dissection during open and laparoscopic surgeries.
The Enovatemed LE4218 is an advanced energy surgical instrument engineered to deliver reliable vessel sealing and tissue fusion while minimising tissue adhesion and thermal spread. Its integrated sealing and cutting mechanism reduces instrument exchanges, helping surgeons improve procedural efficiency.
Designed with a textured jaw surface, ceramic insulation bumps, and air-groove technology, the device ensures secure tissue grasping and consistent electrosurgical performance.
Key Benefits of the Enovatemed LE4218
- Advanced bipolar electrosurgical energy technology.
- Combines vessel sealing, tissue fusion, and cutting in one device.
- Large curved jaw with a scientific 14° angle for improved access.
- Textured jaw surface enhances tissue grip.
- Air-groove structure helps reduce tissue adhesion.
- Ceramic bump insulation minimises thermal transfer.
- Smooth knife deployment with automatic reset.
- Self-locking trigger mechanism for stable tissue compression.
- An ergonomic pistol-style handle reduces hand fatigue.
- One-touch firing button for convenient operation.
- Sterile, single-use design.
- Fits hand-switching and foot-switching systems.
Designed for Veterinary and Human Surgical Applications
The LE4218 energy surgery instrument supports a wide range of procedures requiring controlled vessel sealing and precise tissue dissection.
Clinical Applications
- Veterinary surgery.
- Gastrointestinal surgery.
- Hepatobiliary surgery.
- Obstetrics and gynecology procedures.
- Thoracic surgery.
- Urological surgery.
- General open surgical procedures.
- Laparoscopic procedures.

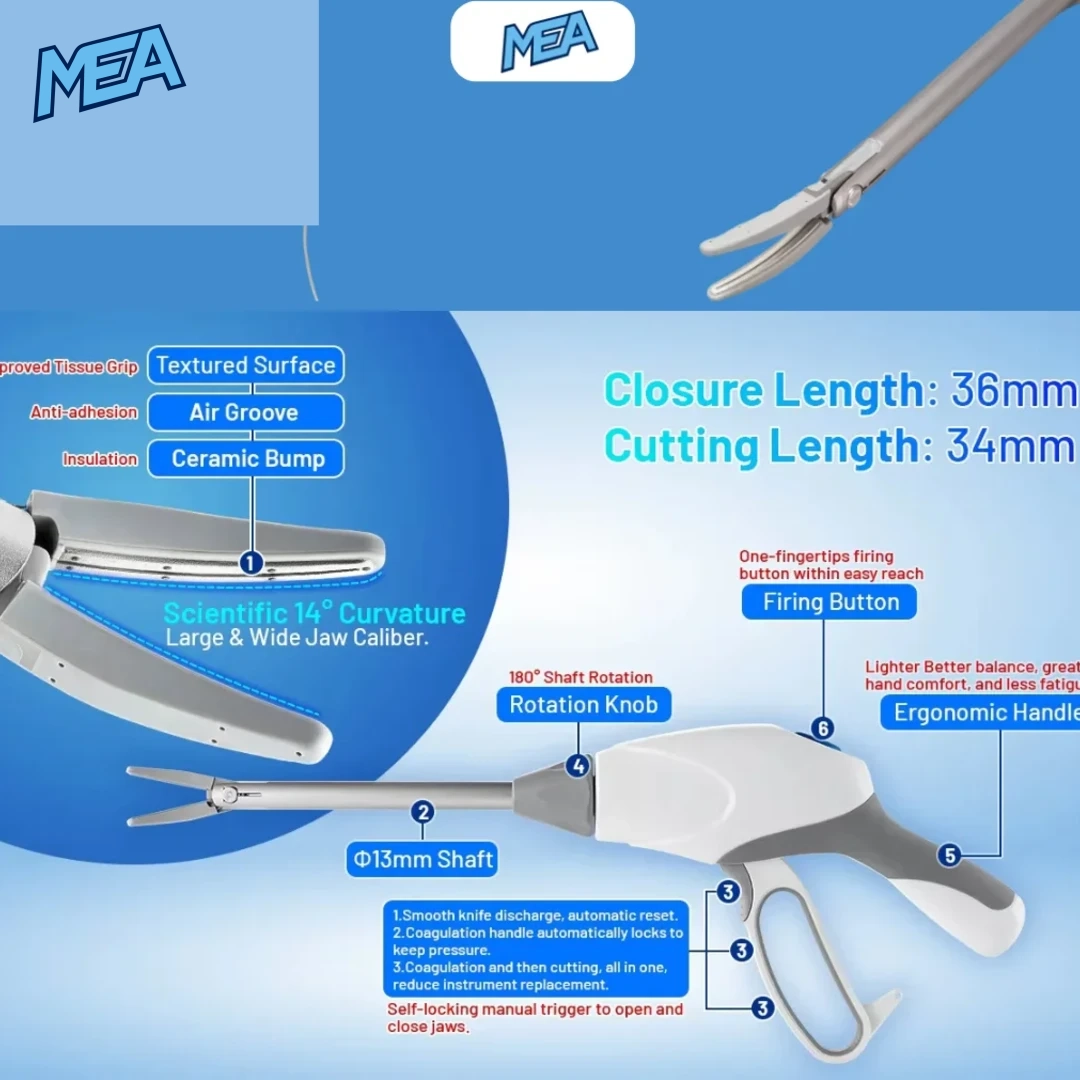

Innovative Jaw and Handle Design
The instrument incorporates multiple engineering features to improve surgical handling and tissue management.
Jaw Technology Features
Improved Tissue Grip
The textured jaw surface provides stable tissue engagement during vessel sealing and cutting.
Anti-Adhesion Design
Integrated air grooves help minimise sticking and reduce tissue adhesion.
Ceramic Insulation
Ceramic bump insulation limits unwanted heat transfer to surrounding tissues.
Large Curved Jaw Configuration
- Large and wide jaw caliber.
- Scientific 14° curvature.
- Coagulation length: 36 mm.
- Cutting length: 34 mm.
Ergonomic Control System
- Ergonomic pistol-grip handle.
- Lightweight and balanced construction.
- Self-locking trigger for jaw opening and closing.
- Automatic coagulation pressure lock.
- Integrated cutting mechanism.
- Smooth blade discharge and reset.
- 180° rotating shaft for enhanced maneuverability.
Technical Specifications
| Specification | Details |
| Brand | Enovatemed |
| Model Number | LE4218 |
| Product Name | Advanced Energy Pistol Open Sealer/Divider |
| Device Type | Bipolar Electrosurgical Vessel Sealing Instrument |
| Category | Advanced Energy Surgical Instrument |
| Function | Vessel Sealing, Tissue Fusion, Electrocautery and Cutting |
| Energy Mode | Electrocoagulation |
| Jaw Design | Large Curved Jaw with Textured Surface |
| Jaw Angle | 14° Curvature |
| Jaw Size | ≥18 mm |
| Coagulation Length | 36 mm |
| Cutting Length | 34 mm |
| Shaft Diameter | Φ13.5 mm (Oval) |
| Shaft Length | 180 mm (7.1 inches) |
| Shaft Rotation | 180° |
| Handle Type | Manual Pistol Grip |
| Switching Options | Hand Switch or Foot Switch |
| Sterility | Sterile, Single Use |
| Power Source | Electrode |
| Instrument Classification | Class II |
| Sterilisation Method | Ethylene Oxide (EO) |
| Warranty | 1 Year |
| Shelf Life | 2 Years |
| Patient Type | Humans and Animals |
Why Choose the Enovatemed LE4218 Vessel Sealer?
Healthcare providers and veterinary specialists choose the Enovatemed LE4218 because it combines multiple surgical functions into a single instrument. The integrated sealing and cutting mechanism improves workflow efficiency while reducing the need for frequent instrument replacement.
Its ergonomic handle, rotating shaft, and advanced jaw technology provide precise control during demanding surgical procedures.
Advantages
- Reduces surgical instrument changes.
- Supports low-temperature hemostasis.
- Minimises tissue adhesion.
- Enhances surgeon comfort during long procedures.
- Suitable for veterinary and human surgical environments.
- Designed for reliable vessel sealing performance.
Frequently Asked Questions
What is the Enovatemed LE4218 used for?
The Enovatemed LE4218 is used for vessel sealing, tissue fusion, coagulation, and cutting during open and laparoscopic surgical procedures in both veterinary and human medicine.
Is the LE4218 suitable for veterinary surgery?
Yes. The instrument is designed for use in veterinary applications as well as gastrointestinal, gynecological, thoracic, hepatobiliary, and urological surgeries.
Is the Enovatemed LE4218 reusable?
No. The LE4218 is a sterile, single-use electrosurgical instrument intended for one procedure only.
What are the dimensions of the LE4218 shaft?
The instrument features an oval shaft with a diameter of 13.5 mm and a shaft length of 180 mm.
Does the instrument support rotation?
Yes. The shaft rotates up to 180 degrees, allowing improved access and positioning during surgery.
What safety certifications does the LE4218 have?
The device is CE-certified and classified as a Class II medical instrument.
How does the anti-adhesion system work?
The jaw incorporates air-groove technology and ceramic insulation bumps to reduce tissue sticking and help control thermal spread during coagulation and cutting.
