A sterilisation pouch sealer is a heat sealing machine that closes paper/film sterilisation pouches and reels before autoclaving. This dental pulse sealing machine uses a PTC heating bar held at 220°C ±10°C to lay down a 10mm-wide seal across a 250mm sealing length in about 3 seconds, with built-in double blades to trim the reel cleanly and an automatic alarm that warns of operating errors or faulty parts. It runs on 220V 50/60Hz mains power, draws 100W and can sit on the bench or be wall-mounted.
Why Choose This Sterilisation Pouch Sealer
- Consistent seals: Automatic thermostat control keeps the heating bar at 220°C ±10°C so every pouch gets the same 10mm seal.
- Fast packaging workflow: A roughly 3-second sealing cycle lets staff pack instrument cassettes and handpieces quickly between patients.
- Clean cut every time: Built-in double blades trim sterilisation reel to length with a smooth edge.
- Error alarm: The unit sounds an alarm on wrong operation or if a spare part fails, helping prevent unsealed packs reaching the autoclave.
- Saves bench space: Wall-mountable design with a rear mounting bracket, or use it on a worktop.
- Easy to clean: Smooth, corrosion-resistant plastic housing wipes down with standard surface disinfectants.
- CE and ISO certified for professional clinic use.
Key Features of the Dental Pulse Sealer
PTC Heating Bar With Automatic Thermostat
The PTC (positive temperature coefficient) heating element self-regulates and is paired with an automatic thermostat for a long service life and stable sealing temperature.

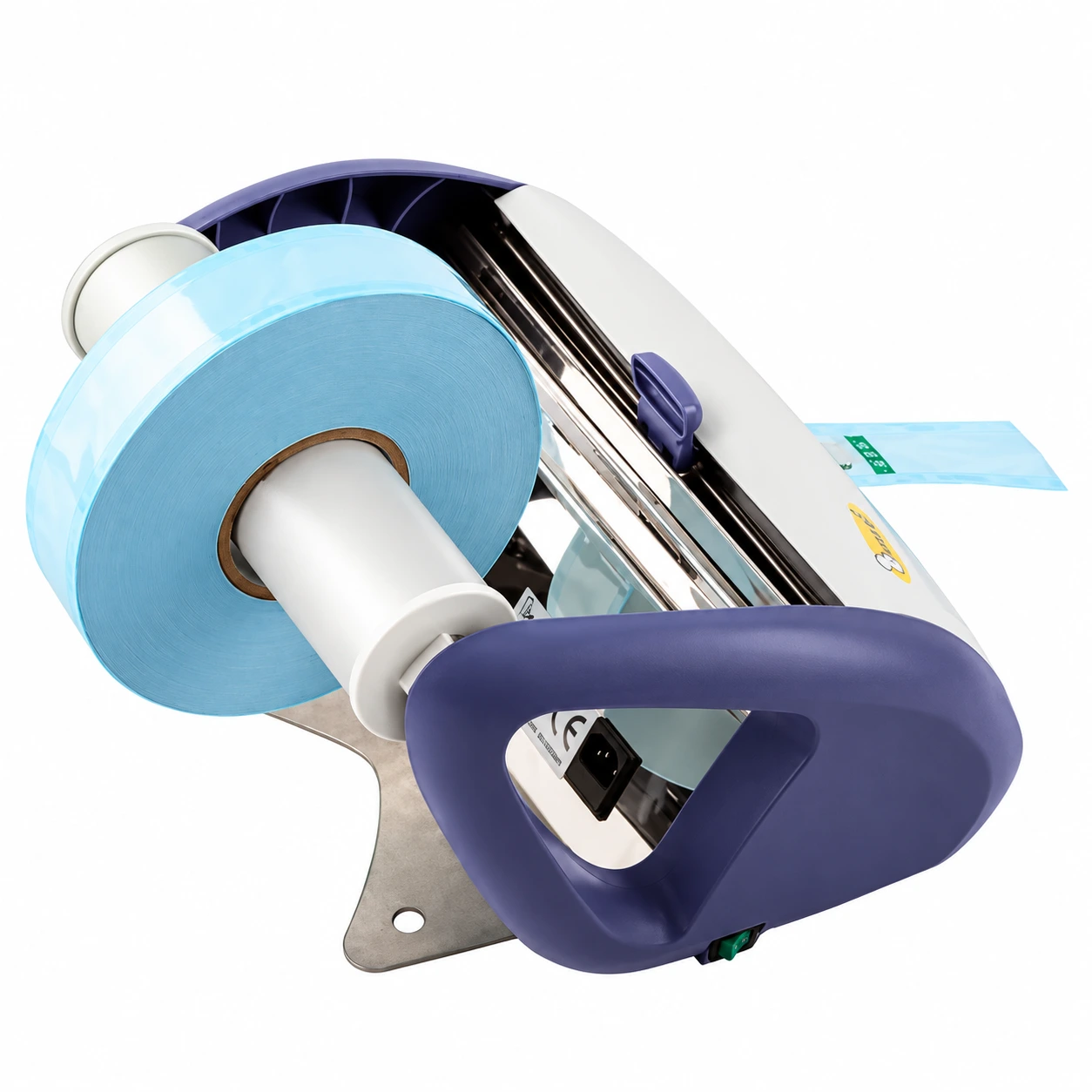

Integrated Reel Holder and Cutter

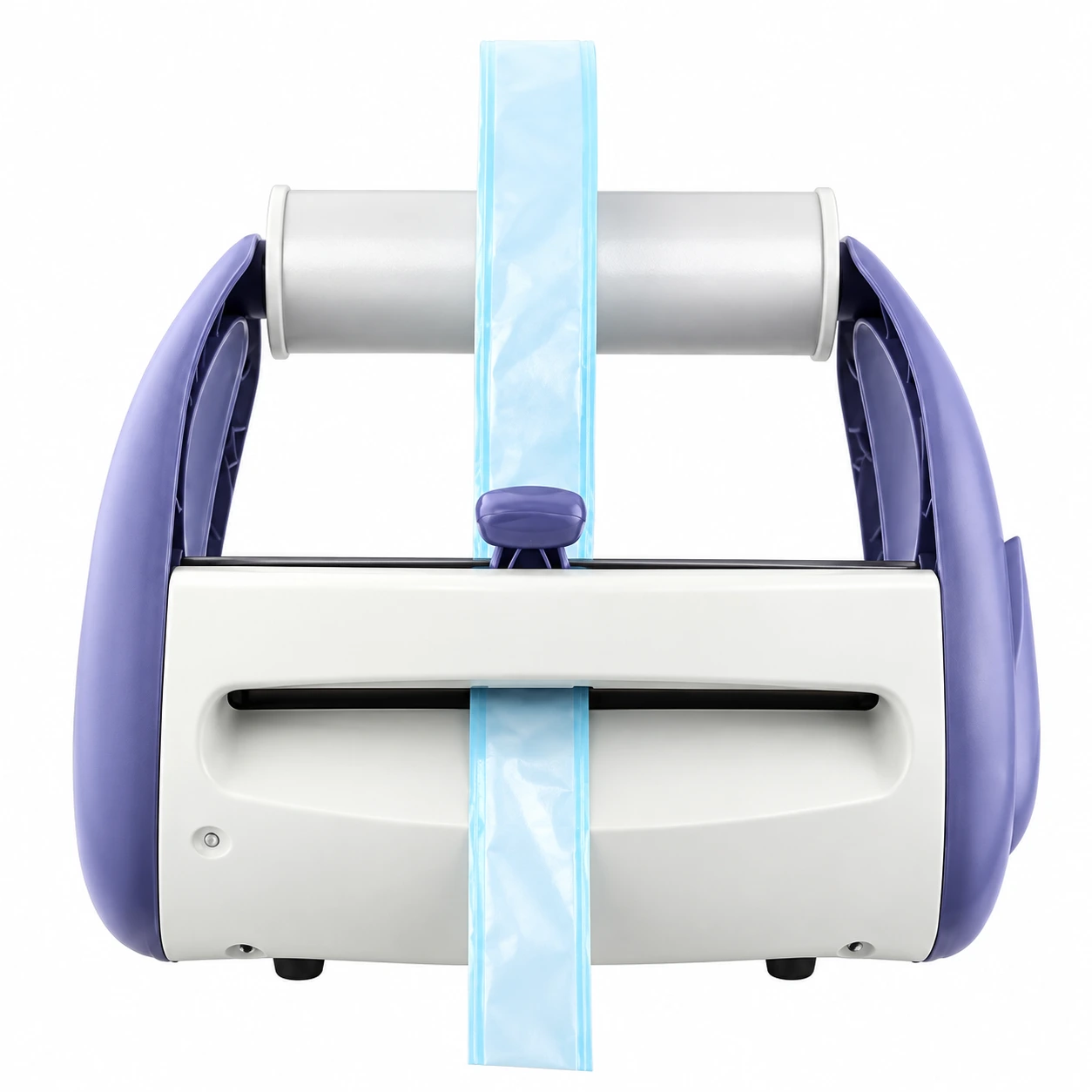

A top-mounted holder bar carries sterilisation reels; the reel feeds through the front sealing slot and the built-in blades cut each pouch to the length you need.

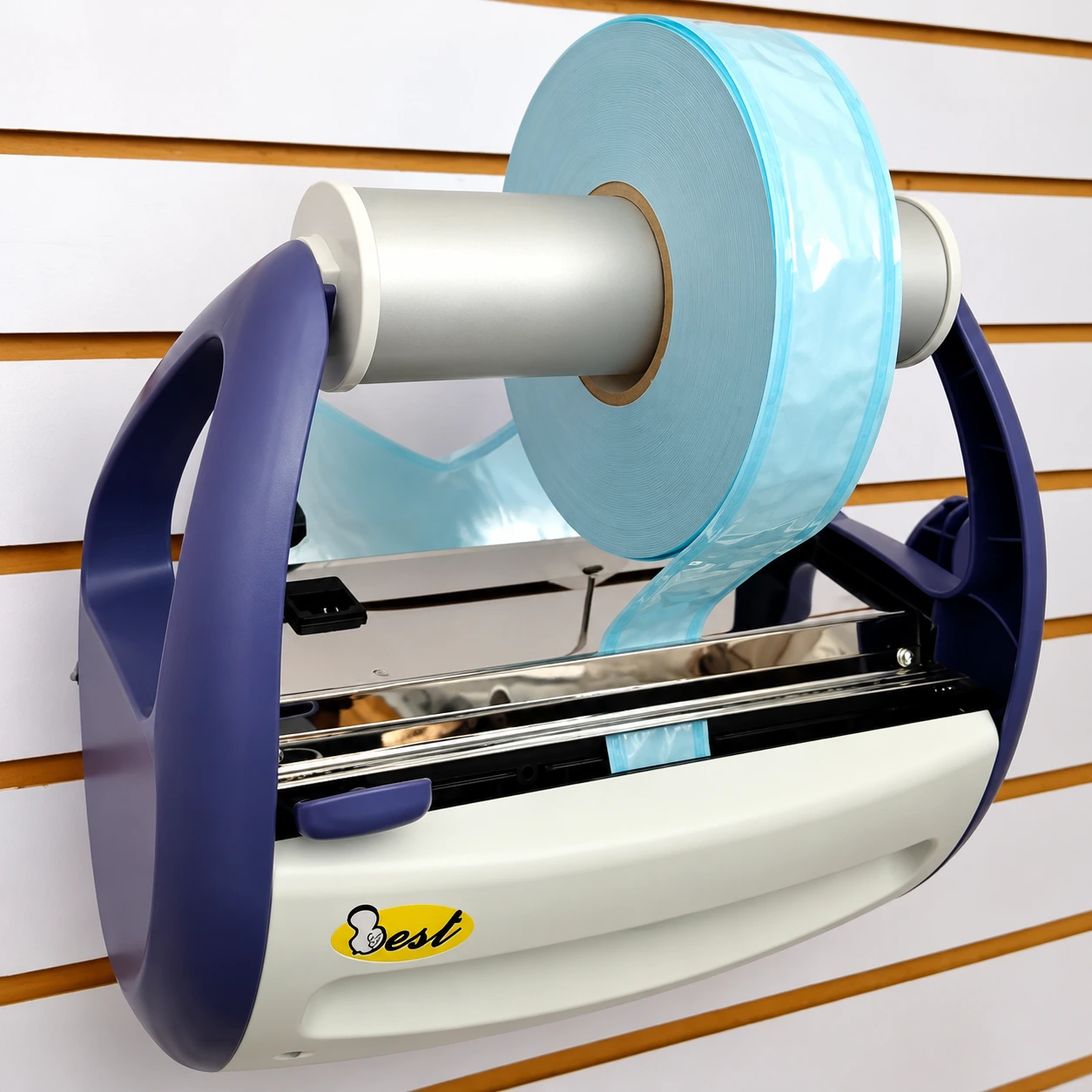

Wall-Mounted or Benchtop Use

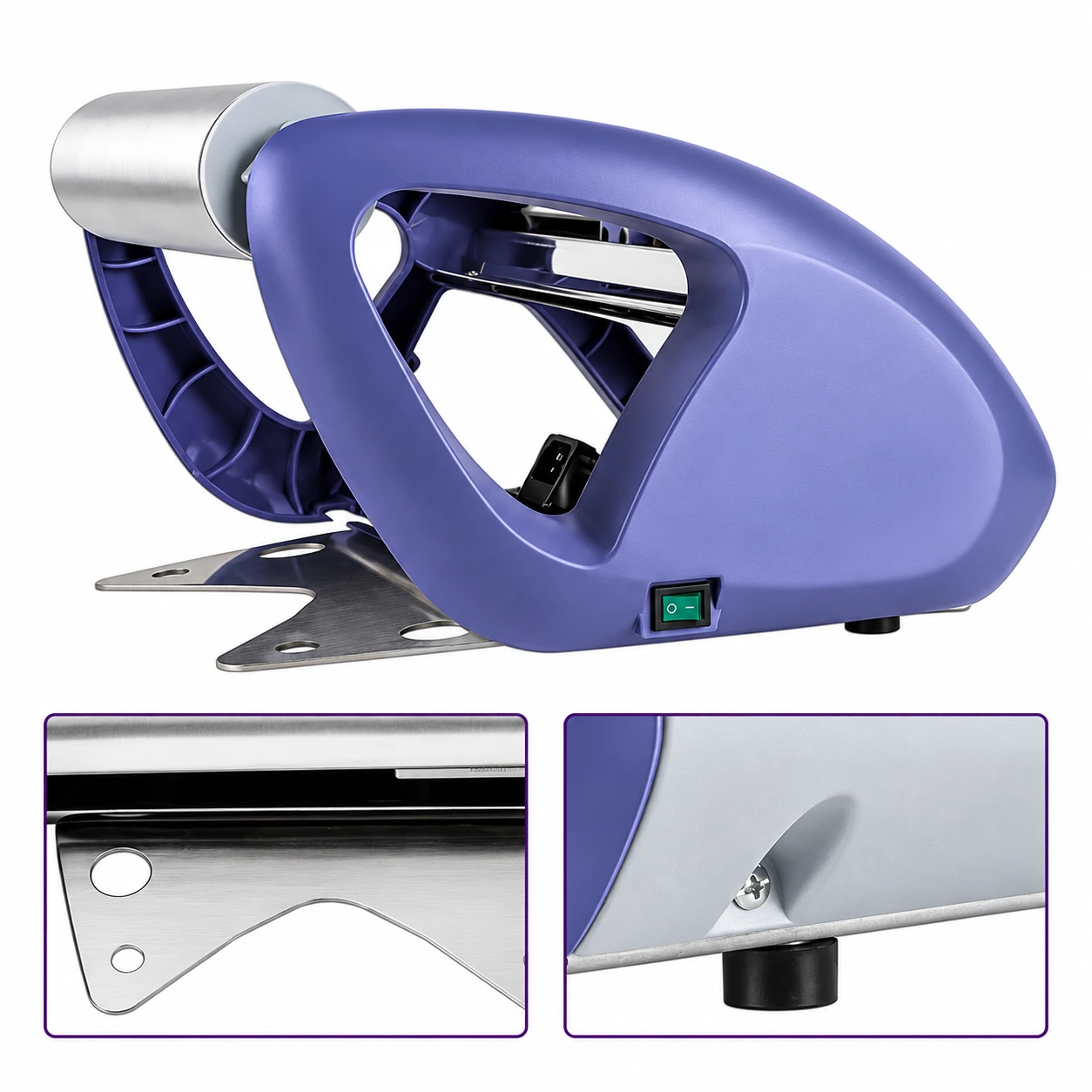

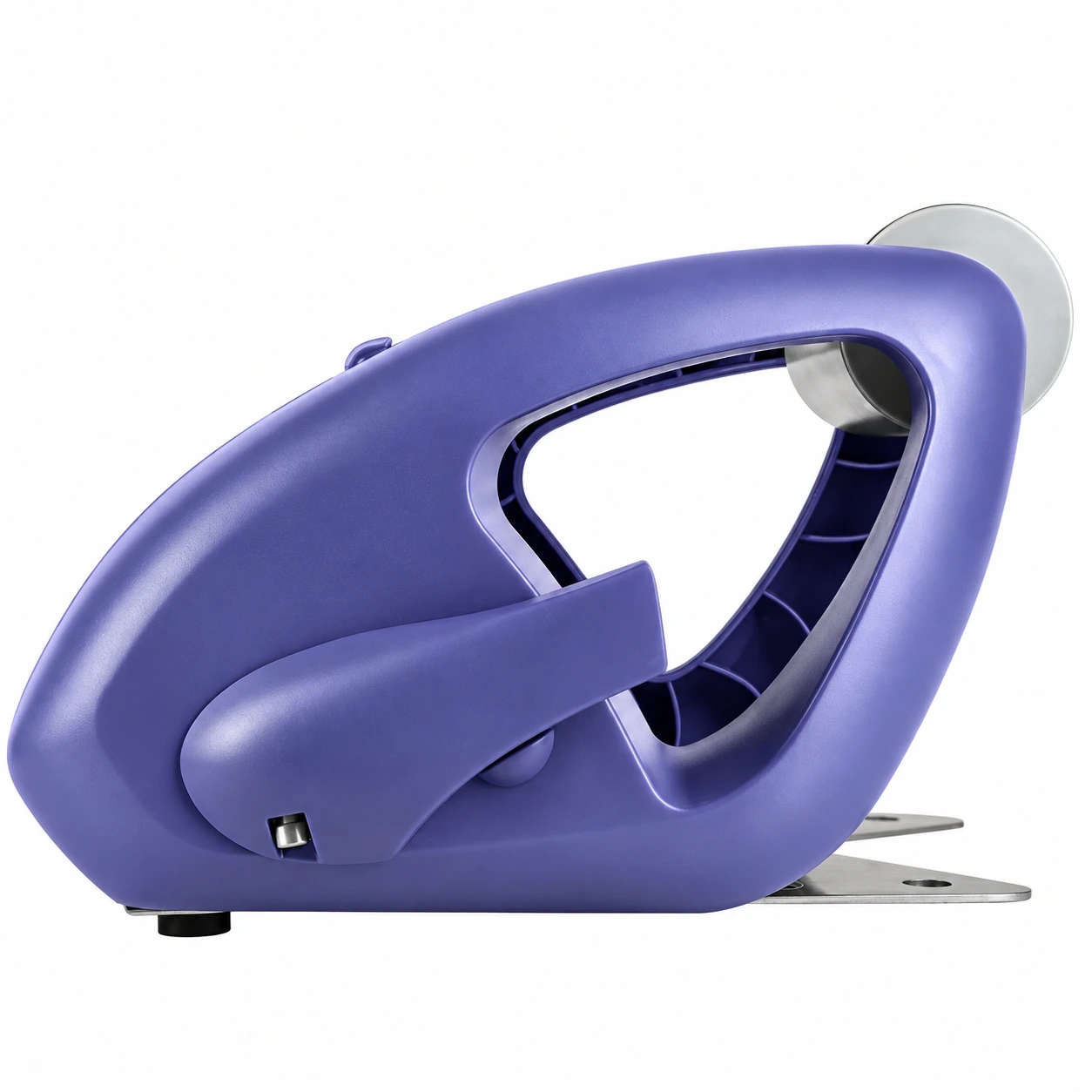

The ergonomic handle frame and rear bracket let you mount the sealer on a sterilisation-room wall to free up bench space, or stand it on its rubber feet.
Simple Operation
One power switch, automatic temperature control and a press-down handle make the sealer easy for any staff member to use with minimal training.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Pulse heat sealing machine (thermo sealer) for sterilisation pouches and reels |
| Power Supply | 220V AC (±22V), 50/60Hz |
| Input Power | 100W |
| Sealing Temperature | 220°C ±10°C (automatic thermostat) |
| Heating Element | PTC heating bar |
| Seal Width | 10mm |
| Sealing Length | 250mm |
| Seal Duration | Approx. 3 seconds |
| Cutter | Built-in double blades |
| Safety | Automatic alarm for wrong operation or faulty parts |
| Mounting | Wall-mountable or benchtop |
| Housing Material | Plastic (corrosion-resistant, easy to clean) |
| Overall Dimensions | 480 × 330 × 280mm |
| Net Weight | 6.5kg |
| Gross Weight | 8kg |
| Certification | CE, ISO |
| Condition | New |
What’s in the Box
- 1 × Dental pulse sealing machine (220V) with reel holder bar
Please note: sterilisation pouches and reels are not included.
Applications and Use Cases
- Dental clinics: Packaging handpieces, hand instruments, burs and cassettes before steam sterilisation.
- Medical practices and hospitals: Sealing surgical and procedure instruments into sterilisation pouches.
- Dental and medical laboratories: Preparing sterile packs for lab tools and accessories.
- Veterinary, tattoo and beauty clinics: Sealing reusable tools for autoclave processing.
How to Use the Sterilisation Pouch Sealer
- Switch on and allow the heating bar to reach working temperature.
- Load the sterilisation reel on the holder bar and draw the open end through the sealing slot.
- Place instruments in the pouch, position the open edge under the sealing bar and press the handle for about 3 seconds.
- Use the built-in cutter to trim the pouch, check the seal is continuous, then load into the autoclave.
Frequently Asked Questions
What does a sterilisation pouch sealer do?
It heat-seals the open end of paper/film sterilisation pouches or reels so instruments stay sterile after autoclaving until the pack is opened.
What seal width and sealing length does this sealer give?
It produces a 10mm-wide seal over a sealing length of up to 250mm.
What temperature does the dental pulse sealer use?
The PTC heating bar runs at 220°C ±10°C under automatic thermostat control.
Can the sealer be mounted on a wall?
Yes. It is designed for wall mounting to save bench space and can also be used on a benchtop.
Does it cut the sterilisation reel?
Yes. Built-in double blades trim the reel with a smooth, clean edge.
What voltage is this model?
This listing is the 220V (±22V), 50/60Hz model, rated at 100W, suited to Australian mains power.
Are sterilisation pouches included?
No. Pouches and reels are sold separately.
