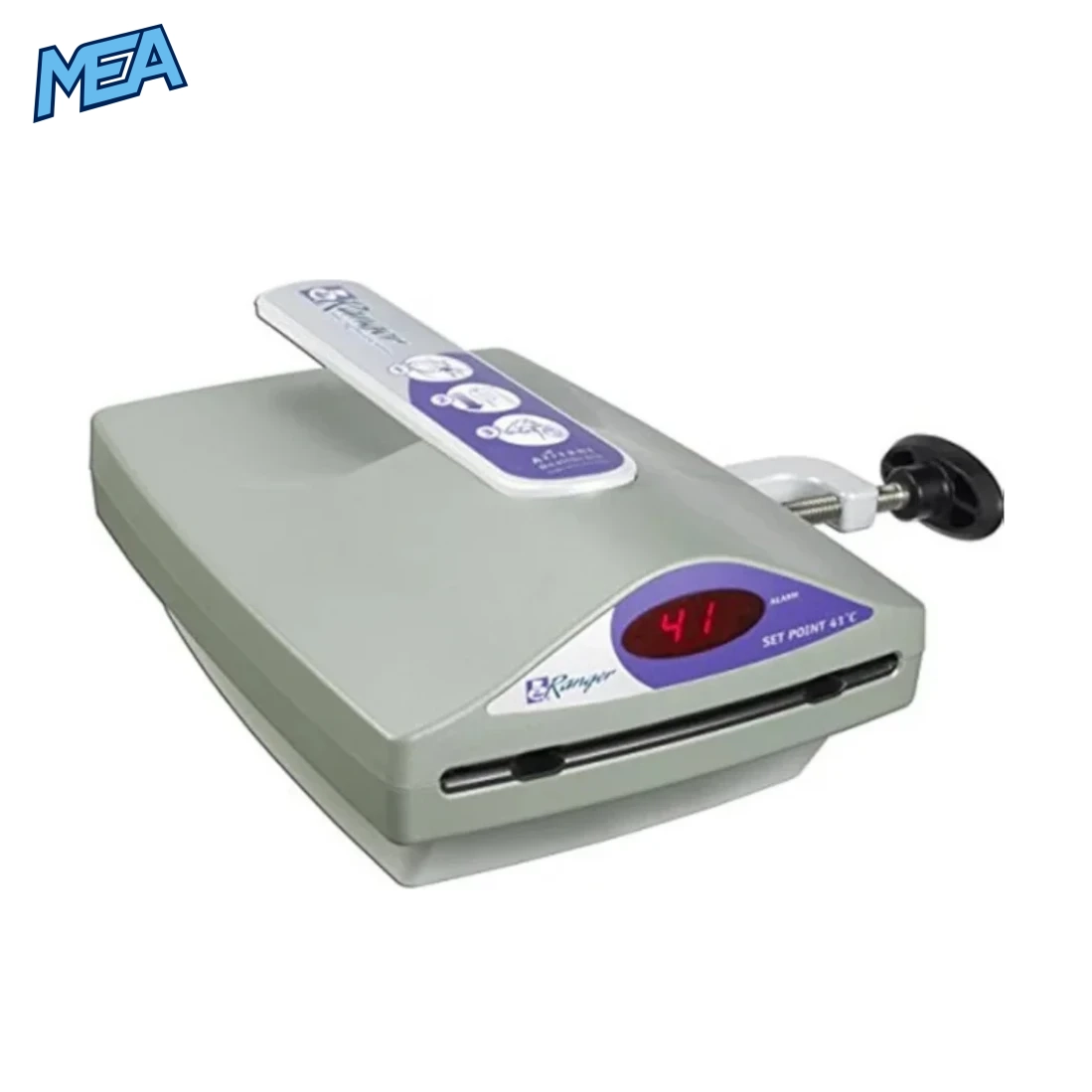

3M Ranger 245 Blood Fluid Warming Unit is a compact blood and fluid warming system designed to warm blood, blood products, and intravenous fluids before delivery to patients. The Model 245 provides controlled warming with an adjustable temperature range of 37°C to 41°C, rapid heating, audible and visible temperature alerts, and flow rates from paediatric KVO applications up to 500 mL/min.
Its compact design includes an integrated carrying handle and built-in IV pole clamp, making the unit convenient to position and transport.
The system uses highly conductive aluminium heating plates to provide efficient warming through supported Ranger warming sets. A large temperature display allows users to monitor operating temperature easily during use.
Key Benefits Of 3M Ranger 245 Blood Fluid Warming Unit
- Designed for warming blood, blood products, and IV fluids
- Adjustable temperature from 37°C to 41°C
- 41°C standard set-point temperature
- Approximately 45 seconds heating time
- Supports flow rates up to 500 mL/min
- Compact and portable design with integrated handle
- Built-in IV pole clamp for convenient mounting
- Large, easy-to-read temperature display
- Audible and visible over-temperature and under-temperature alerts
- Multiple independent temperature safety cut-offs
- Convenient over-temperature test function
- External service interface for PC connection
- Suitable for use with supported Ranger warming sets
3M Ranger 245 Specifications
| Specification | Details |
| Brand | 3M Ranger |
| Product Type | Blood/Fluid Warming Unit |
| Model | 245 |
| Catalogue / Part Number | 24513 |
| 3M ID | 70201801662 |
| Temperature Adjustment | 37°C to 41°C |
| Temperature Interval | 0.5°C |
| Standard Set Point | 41°C |
| Approximate Heating Time | 45 seconds |
| Pediatric Flow Rate | KVO to 100 mL/min |
| Standard Flow Rate | KVO to 150 mL/min |
| High Flow Rate | Up to 500 mL/min |
| Primary Over-Temperature Setpoint | 43°C |
| Secondary Over-Temperature Setpoint | 44°C |
| Safety Cut-Offs | Multiple independent cut-offs at 42°C |
| Alarm Frequency | 3400 Hz |
| Acoustic Alarm Level | Approximately 70 dB(A) |
| Power Consumption | 280 W |
| Current | 1.5 A |
| Power Supply | 220-240 V AC or 115 V AC, 50/60 Hz |
| Fuses | Primary: 2 × 1.6 AT; Secondary: 500 mAT |
| Dimensions | 19 × 11 × 25 cm (W × H × D) |
| Weight | 3.3 kg |
| Temperature Display | Large digital display |
| Mounting | Integrated IV pole clamp |
| Service Interface | External PC service interface |
Features of the 3M Ranger 245 Blood Fluid Warming Unit
Rapid Blood and Fluid Warming
The Ranger Model 245 is designed to reach its operating temperature quickly, with an approximate heating time of 45 seconds. This allows fluids to be warmed efficiently before administration.
Adjustable Temperature Control
The unit provides temperature adjustment from 37°C to 41°C in 0.5°C increments, with a standard set-point of 41°C. The temperature display provides a clear view of the operating condition.
Multiple Flow Rate Options
The 3M Ranger 245 supports different flow requirements, including paediatric and standard-flow applications as well as high-flow use.
- Pediatric KVO: up to 100 mL/min
- Standard Flow KVO: up to 150 mL/min
- High Flow KVO: up to 500 mL/min
Temperature Safety Features
The warming system incorporates multiple temperature monitoring and protection features. Audible and visible alarms alert users to over-temperature and under-temperature conditions.
The specified temperature protection includes:
- Primary over-temperature setpoint: 43°C
- Secondary over-temperature setpoint: 44°C
- Independent safety cut-outs at 42°C
- Audible alarm frequency: 3400 Hz
- Acoustic level: approximately 70 dB(A)
Compact Design for Clinical Environments
The 3M Ranger Blood/Fluid Warming Unit Model 245 has a compact footprint and integrated carrying handle for easier transport. Its built-in IV pole clamp allows the warming unit to be securely mounted to a supported IV pole or standard rail.
The large display and straightforward controls are designed to make routine operation and temperature monitoring easier for clinical staff.
Typical Use Cases
The 3M Ranger 245 Blood Fluid Warming Unit can be used in healthcare settings where controlled warming of supported blood products or intravenous fluids is required.
Typical applications include:
- Warming blood and blood products
- Warming intravenous fluids
- High-flow fluid warming applications
- Standard-flow fluid administration
- Pediatric fluid warming applications
- Clinical environments requiring portable fluid warming equipment
The appropriate Ranger warming set and accessories should be selected according to the intended application and manufacturer fit requirements.
Why Choose the 3M Ranger 245 Blood Fluid Warming Unit?
The Ranger Model 245 combines controlled temperature management, rapid warming, flexible flow-rate capability, and a compact design in one blood and fluid warming system.
Its key advantages include:
- Fast warming: Approximately 45-second heating time
- Flexible temperature control: Adjustable from 37°C to 41°C
- High flow capability: Supports flow rates up to 500 mL/min
- Safety monitoring: Audible and visual temperature alerts
- Portable design: Integrated handle and IV pole mounting
- Easy monitoring: Large, easy-to-read temperature display
- Clinical versatility: Designed for blood, blood products, and supported fluids
Frequently Asked Questions
What is the 3M Ranger 245 Blood Fluid Warming Unit?
The 3M Ranger 245 Blood Fluid Warming Unit is a medical warming system designed to warm blood, blood products, and supported intravenous fluids before administration.
What is the model number of the 3M Ranger Blood Fluid Warming Unit?
The model number is 245. The corresponding catalogue/part number for the referenced unit is 24513.
What is the part number for the 3M Ranger Model 245?
The catalogue or part number is 24513 for the referenced 220-240 V configuration.
What temperature can the Ranger 245 achieve?
The unit provides adjustable temperature control from 37°C to 41°C, with adjustments available in 0.5°C increments. The standard set point is 41°C.
What is the maximum flow rate of the Ranger 245?
The specified high-flow capability is up to 500 mL/min. Pediatric and standard-flow applications are specified at up to 100 mL/min and 150 mL/min respectively.
How quickly does the Ranger 245 warm?
The approximate heating time is 45 seconds, depending on operating conditions and the supported warming set being used.
Does the Ranger 245 have temperature alarms?
Yes. The system provides audible and visible alerts for over-temperature and under-temperature conditions, along with multiple independent temperature safety cut-offs.
Is the 3M Ranger 245 portable?
Yes. The unit has a compact design with an integrated carrying handle. It also includes a built-in IV pole clamp for mounting to a supported IV pole or standard rail.
