The 3DS V3 Pro scanner tip is a reusable, autoclavable intraoral scanner head that fits onto the front of the 3DS V3 Pro dental imaging scanner handpiece (and earlier 3DS scanner versions) to capture digital impressions. It is made from durable medical plastic, marked for 134°C steam sterilisation, rated for up to 100 sterilisation cycles, and is available in two sizes: Mini (part code BSDA01) and Normal (part code BNDA01).
Why Choose This 3DS V3 Pro Replacement Scanner Tip
- Up to 100 sterilisation cycles one tip serves many patients, lowering cost per scan compared with frequent tip replacement.

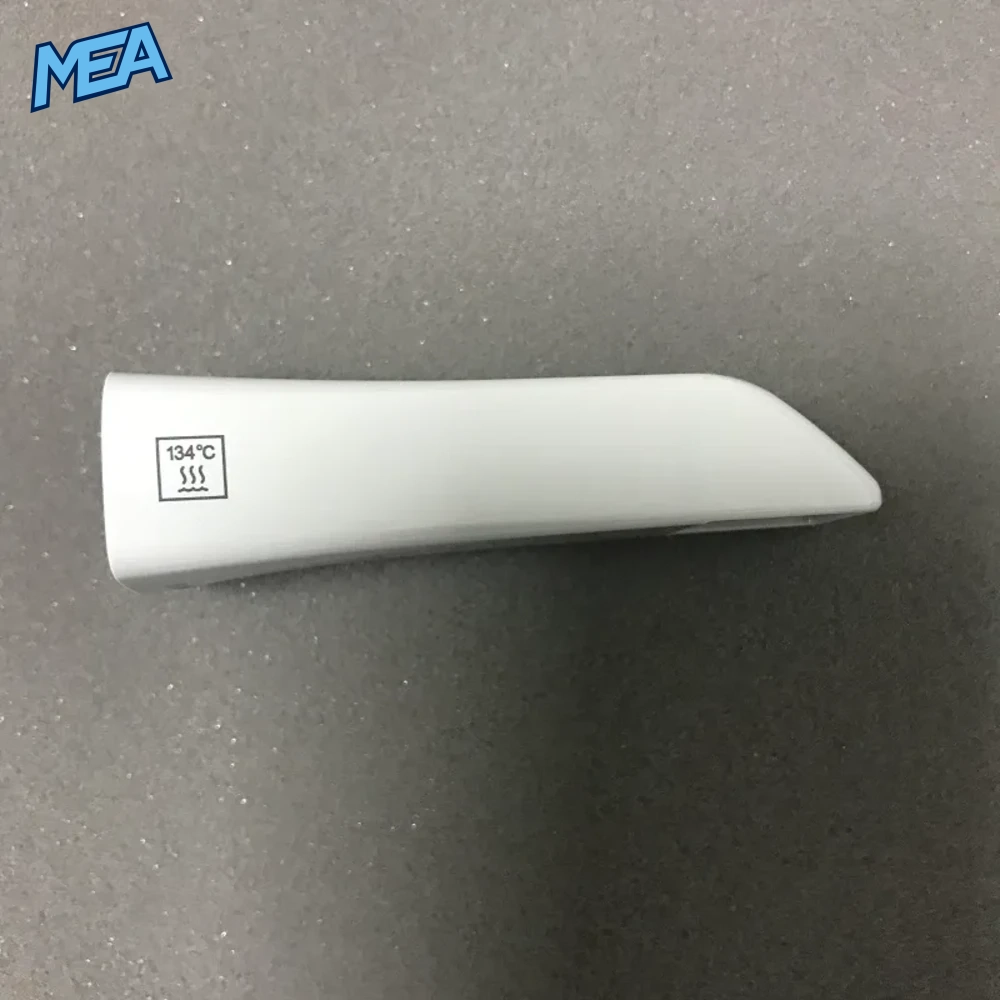

- 134°C autoclave rated the autoclave symbol and temperature are moulded into the tip body for quick identification in the sterilisation room.
- Two sizes for every patient the Mini tip improves access for posterior areas, children and patients with limited mouth opening; the Normal tip covers standard full-arch scans.
- Keeps your scanner in service a spare tip lets one tip be reprocessed while another is in use, avoiding scanning downtime.
- CE certified accessory for professional dental use.
Features of the 3DS Intraoral Scanner Head
- Designed for the 3DS V3 Pro dental imaging scanner and former 3DS versions

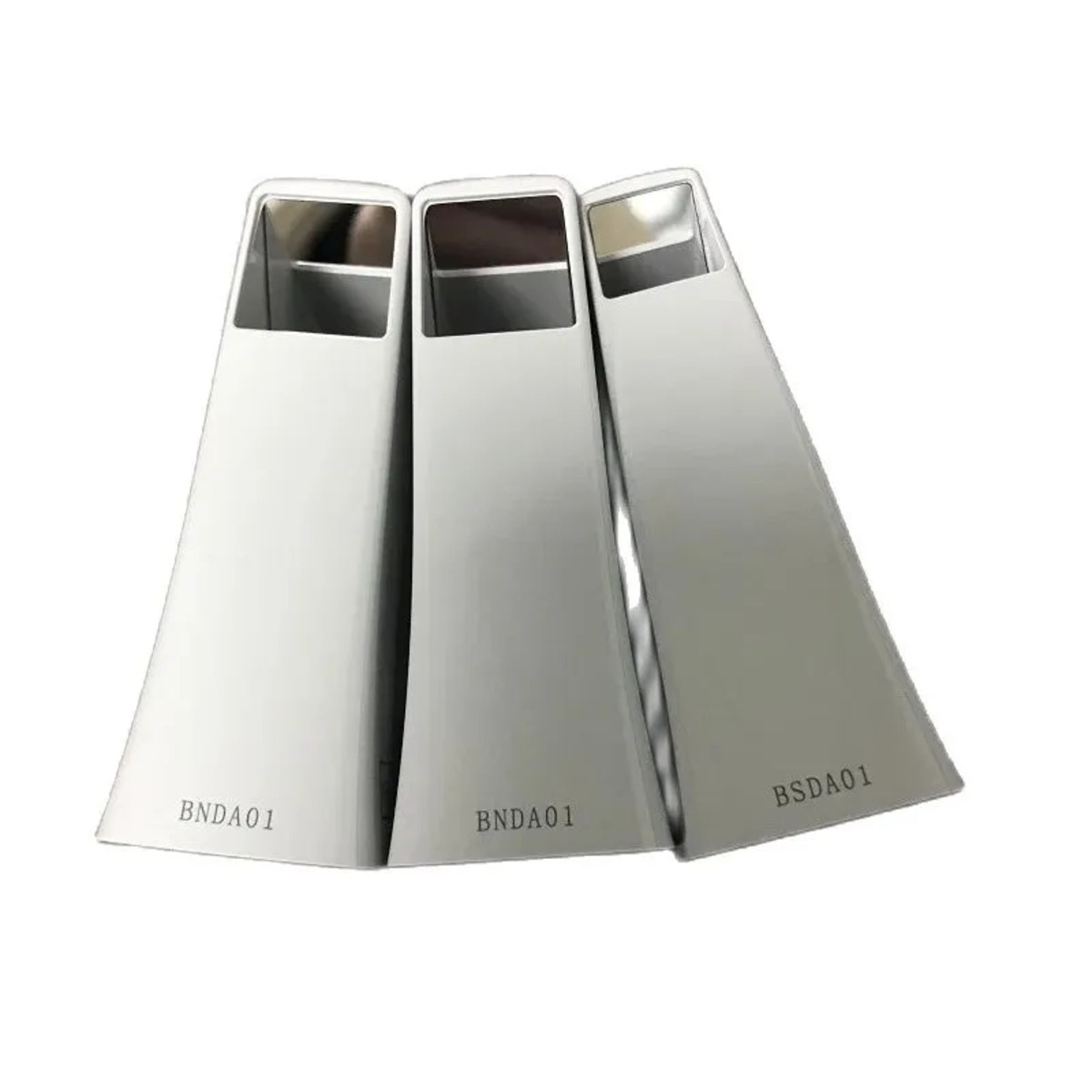

- Engraved part code on each tip: BSDA01 (Mini) or BNDA01 (Normal)
- Rectangular optical window with internal mirror for intraoral image capture
- Tapered, slim profile for patient comfort
- Smooth, lightweight plastic housing that is easy to clean
- Push-fit design slides onto the scanner handpiece
- Condition: brand new
3DS V3 Pro Scanner Tip Specifications
| Specification | Mini Size | Normal Size |
|---|---|---|
| Engraved Part Code | BSDA01 | BNDA01 |
| Length | 80.0 mm | 79.0 mm |
| Tip Width | 16 mm | 19.7 mm |
| Tip Height | 11 mm | 15.8 mm |
| Scanner Model | 3DS V3 Pro and former 3DS versions | |
| Product Type | Reusable intraoral scanner tip / scanner head | |
| Material | Plastic | |
| Sterilisation | Autoclave, 134°C (marked on tip) | |
| Sterilisation Cycles | Up to 100 | |
| Quantity | 1 tip | |
| Condition | New | |
Mini vs Normal: Which 3DS Scanner Tip Size Do You Need?

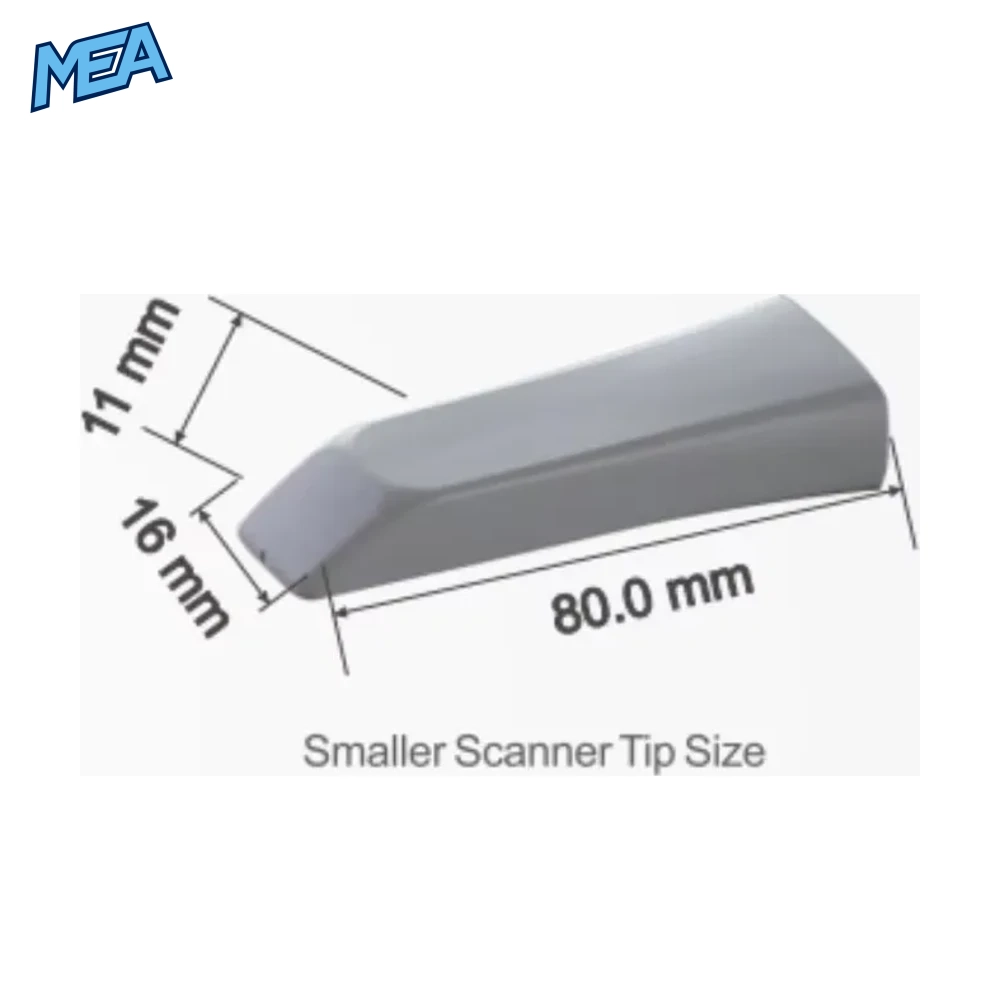

Mini Scanner Tip (BSDA01)
The Mini tip has a smaller 16 × 11 mm head. Choose it for molar and third-molar regions, pediatric patients, orthodontic patients and anyone with a small mouth or restricted opening.

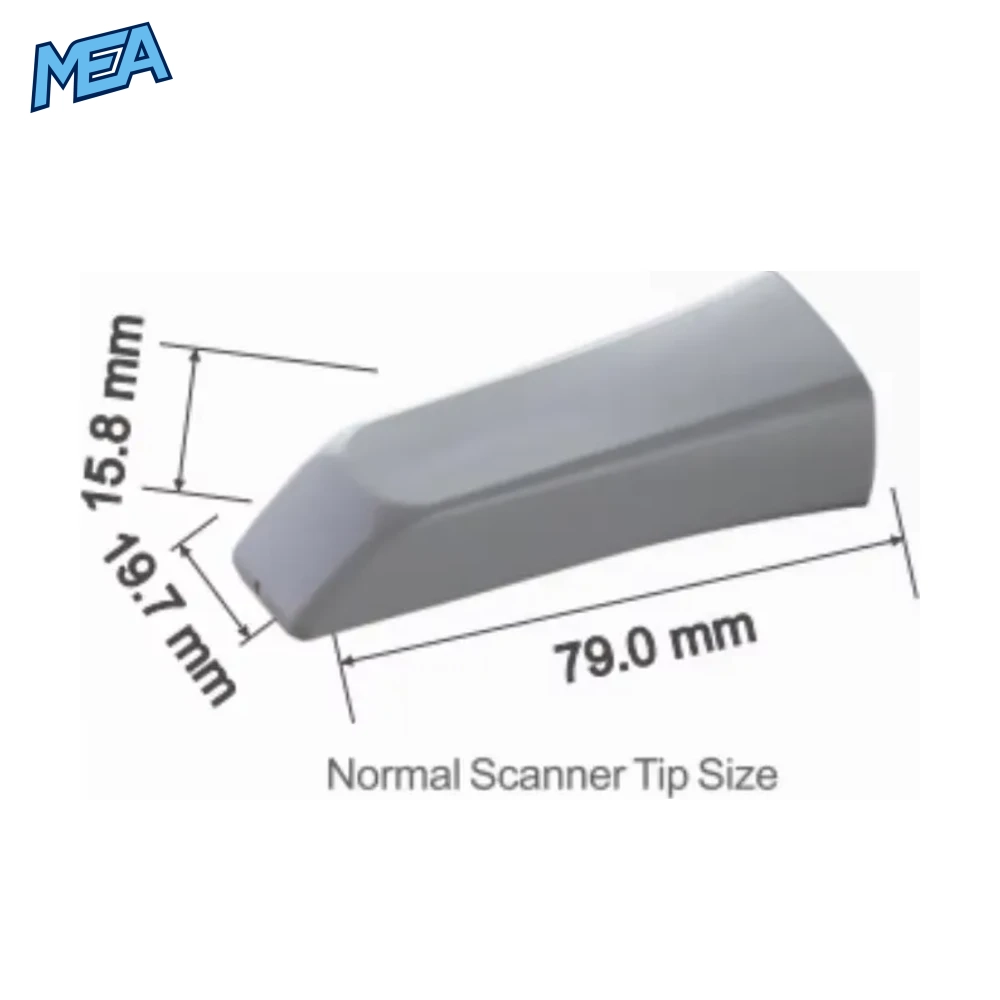

Normal Scanner Tip (BNDA01)
The Normal tip has a larger 19.7 × 15.8 mm head that captures a wider field of view per frame. It suits routine adult full-arch scans, crown and bridge preparations and implant scan bodies.
Applications and Use Cases
- Digital impressions for crowns, bridges, inlays and onlays
- Implant planning and scan-body capture
- Clear aligner and orthodontic records
- Full-arch and quadrant scanning in general dentistry
- Chairside CAD/CAM and digital lab workflows
- Stocking spare tips for multi-chair clinics
Cleaning and Sterilisation Guidance
- Remove the tip from the handpiece straight after each patient.
- Pre-clean with a soft brush and mild detergent; do not scratch the optical window or mirror.
- Rinse, dry with a lint-free cloth and place in a sterilisation pouch.
- Steam autoclave at 134°C, following your scanner’s instructions for use.
- Replace the tip once it reaches 100 cycles, or earlier if the mirror becomes scratched or cloudy.
Frequently Asked Questions
Which scanner does this tip fit?
It is made for the 3DS V3 Pro dental imaging scanner and earlier 3DS scanner versions. Compare the part code on your current tip (BSDA01 or BNDA01) before ordering.
How many times can the 3DS V3 Pro scanner tip be sterilised?
Up to 100 times when processed by steam autoclave at 134°C.
What is the difference between BSDA01 and BNDA01?
BSDA01 is the Mini tip (80.0 × 16 × 11 mm) for small mouths and posterior access. BNDA01 is the Normal tip (79.0 × 19.7 × 15.8 mm) for standard adult scanning.
Is the scanner handpiece included?
No. This listing is for one scanner tip only; the scanner and software are not included.
Is this tip new or refurbished?
It is a brand-new scanner tip.
Can I use disposable sleeves instead of autoclaving?
This tip is designed to be reprocessed by autoclave between patients. Follow your clinic’s infection-control protocol and the scanner’s instructions for use.
Related Intraoral Scanner Accessories
Explore more digital dentistry accessories: Medit i500 intraoral scanner tip head, Medit i600/i700 reusable autoclavable scanner tip, 3Shape TRIOS intraoral scanner tips with mirror, iTero disposable scanner sleeves and the dental scanner cart with drawer.
