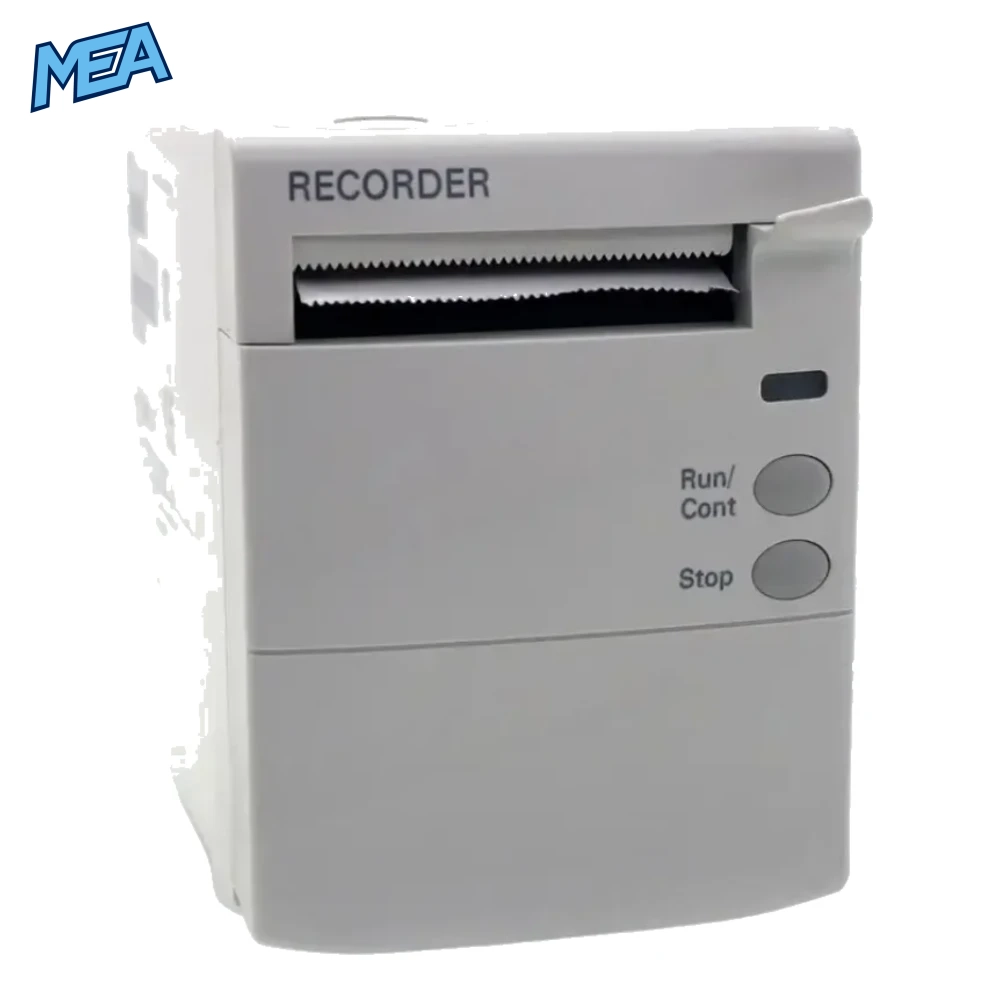

The M1116B Philips Recorder Module is designed to integrate seamlessly into compatible Philips modular monitoring systems. This printer module enables clinicians to generate immediate, high-resolution hard copies of:
- ECG waveforms
- Respiratory waveforms
- Blood pressure traces
- Multi-parameter patient data
- Time-stamped clinical annotations
As a double-width thermal recorder module, the M1116B provides enhanced print area compared to single-width units, allowing for simultaneous waveform printing and detailed annotations without compromising clarity.
This product is offered in refurbished condition, fully tested for functionality and performance, and backed by a 30-day warranty for confidence and peace of mind.
Key Specifications
Product Name: Philips M1116B Patient Monitor Recorder Module
Part Number (P/N): M1116B
OEM: Philips
Item Type: Module, Printer for Patient Monitor Recorder
Recording Technology: Thermal Array
Paper Width: 50 mm (2 inches)
Waveform Capacity: Up to 3 waveforms simultaneously
Annotation Lines: Multiple lines supported
Recording Speeds: 10 selectable speeds
Condition: Refurbished
Returnable: Yes
Warranty: 30 Days
Designed for Philips Modular Patient Monitoring Systems
The Philips M1116B printer module is specifically built to work with Philips modular patient monitors. These systems rely on modular architecture, meaning individual components such as recorder modules can be inserted or replaced without replacing the entire monitoring unit.
This makes the M1116B thermal recorder module a cost-effective replacement solution for hospitals and biomedical departments looking to maintain operational efficiency without investing in new monitoring systems.
The module is engineered to integrate smoothly with compatible Philips monitoring platforms, ensuring:
- Immediate system recognition
- Seamless data transmission
- Stable recording output
- Accurate waveform reproduction
Thermal Array Printing Technology
At the core of the Philips M1116B patient monitor recorder is thermal array printing technology, known for:
- High-resolution waveform clarity
- Fast response time
- Quiet operation
- Minimal mechanical wear
- Reduced maintenance requirements
Unlike ink-based printing systems, thermal recording eliminates the need for cartridges or ribbons. This simplifies hospital logistics and reduces downtime associated with consumable replacement.
The thermal strip chart recorder produces consistent, legible documentation essential for patient records, legal compliance, and clinical analysis.
Double-Width Module Advantage
The M1116B is a double-width recorder module, offering significant advantages over standard-width modules:
1. 50 mm (2-Inch) Wide Recording Strip
Provides ample space for waveform detail and annotations.
2. Multi-Waveform Capability
Prints up to three waveforms simultaneously, allowing clinicians to compare vital signs in real time.
3. Multiple Annotation Lines
Supports time stamps, alarm events, and parameter labels for comprehensive documentation.
This expanded print capacity enhances clinical workflow efficiency by reducing the need for repeated recordings.
Clinical Applications
The Philips M1116B patient monitor printer module is widely used in:
- Intensive Care Units (ICU)
- Operating Rooms (OR)
- Emergency Departments
- Cardiology Units
- Post-Anesthesia Care Units (PACU)
- General Wards
It is particularly valuable for:
- Arrhythmia documentation
- Alarm event capture
- Procedure recording
- Diagnostic review
- Legal documentation
When immediate waveform printing is required, this thermal recorder module delivers dependable performance.
Refurbished Condition: Fully Tested & Verified
This Philips M1116B module is offered in refurbished condition, meaning:
- Fully inspected by qualified technicians
- Internal components tested for functionality
- Print head evaluated for clarity
- Mechanical and electronic systems verified
- Cleaned and prepared for clinical deployment
Refurbished medical equipment provides substantial cost savings while maintaining reliable performance standards.
Performance & Recording Speeds
The M1116B recorder module supports ten different recording speeds, allowing clinicians to:
- Capture short event snapshots
- Print extended waveform strips
- Adjust output for diagnostic clarity
- Customize documentation based on clinical needs
This flexibility ensures the module adapts to various monitoring scenarios, from emergency rhythm analysis to long-duration monitoring documentation.
Why Choose the Philips M1116B Recorder Module?
OEM Compatibility
Manufactured by Philips, ensuring system integrity.
Compact Modular Design
Fits directly into compatible Philips monitor slots.
Reliable Thermal Printing
Clear, high-resolution waveform output.
Cost-Effective Replacement
Ideal for biomedical departments maintaining legacy systems.
Fast Installation
No complicated configuration required.
Warranty Coverage
30-day warranty included.
Installation & Integration
Installing the Philips M1116B patient monitor recorder module is straightforward:
- Power off compatible monitor.
- Insert module into designated slot.
- Secure locking mechanism.
- Power on system.
- Verify print functionality via test recording.
The plug-and-play architecture minimizes downtime and ensures continuity of patient monitoring services.
Maintenance & Care
To extend the lifespan of your M1116B recorder module:
- Use approved thermal paper.
- Avoid exposure to excessive humidity.
- Clean module interface periodically.
- Ensure proper seating within the monitor.
Routine preventive maintenance helps maintain optimal print quality.
Frequently Asked Questions
What is the part number of this recorder module?
The official part number is M1116B.
Is this an original Philips product?
Yes, this is an OEM Philips module, refurbished and tested.
What type of printing technology does it use?
It uses thermal array recording technology.
How wide is the recording paper?
The recorder prints on a 50 mm (2-inch) wide strip.
How many waveforms can it print simultaneously?
It supports printing of up to three waveforms at once.
Does this module require ink cartridges?
No. It uses thermal printing and does not require ink or ribbons.
Is this compatible with all Philips monitors?
It is compatible with specific Philips modular patient monitoring systems. Compatibility verification is recommended before purchase.
What condition is the product in?
This unit is refurbished, tested, and fully functional.
Is the product returnable?
Yes, it is returnable as per the stated policy.
What warranty is included?
A 30-day warranty is provided.
