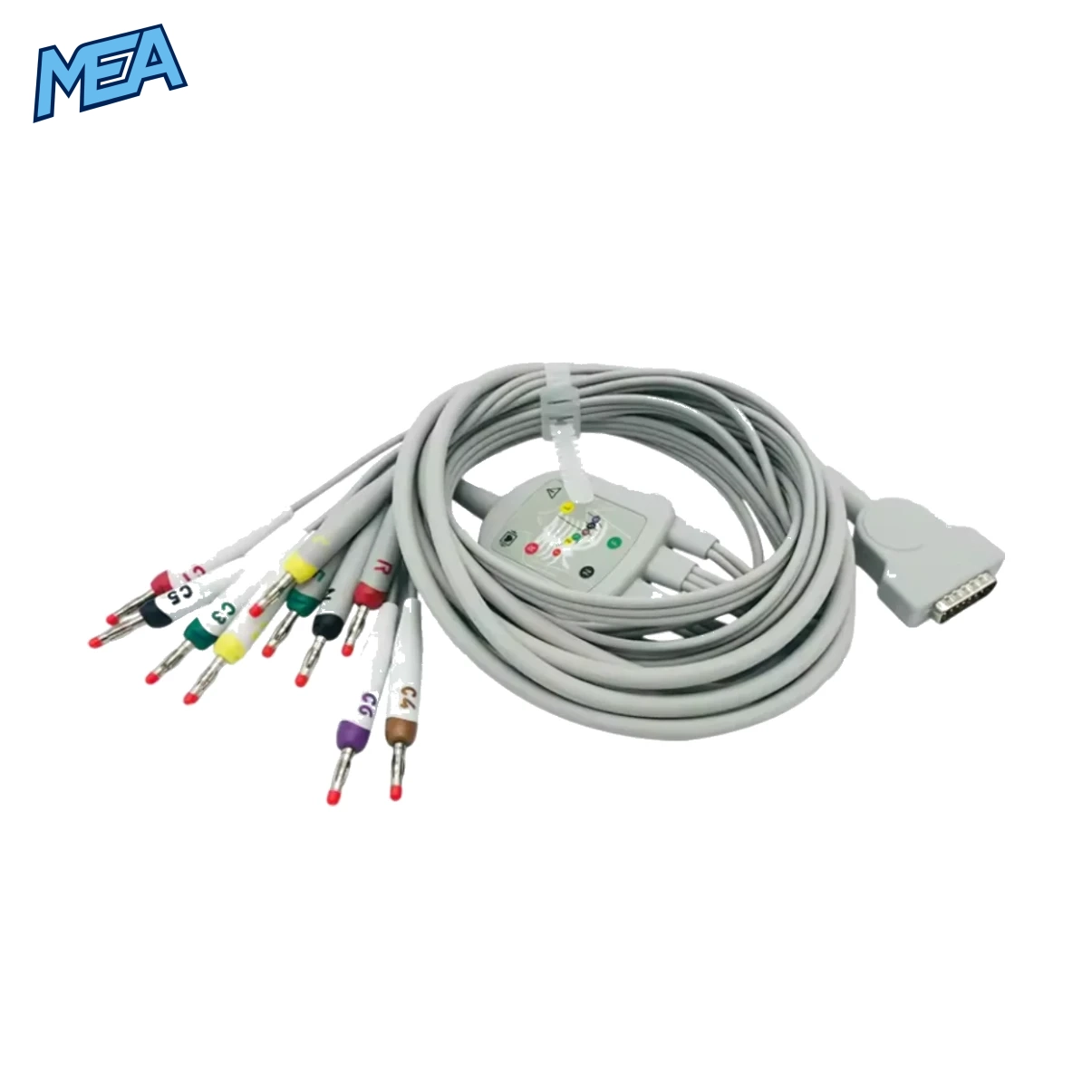

The GE Marquette MAC ECG/EKG cable 10 lead DB15 patient trunk cable is a high-performance replacement solution designed for accurate cardiac signal transmission in clinical and diagnostic environments.
Built for compatibility across multiple GE Marquette MAC ECG systems, this cable ensures stable waveform acquisition, reduced signal noise, and reliable patient monitoring performance.
Engineered with medical-grade TPU insulation and precision-molded connectors, this ECG trunk cable is suitable for hospitals, cardiology departments, emergency care units, and biomedical maintenance applications.
Overview of GE Marquette MAC ECG Cable Compatibility
This ECG cable is widely compatible with GE Marquette MAC series systems, making it a versatile replacement or backup accessory for clinical workflows.
Compatible ECG Machines
- GE Marquette MAC 400
- GE Marquette MAC 500
- GE Marquette MAC 600
- GE Marquette MAC 800
- GE Marquette MAC 1100
- GE Marquette MAC 1200
- GE Marquette MAC 1200ST
- GE Marquette MAC 1600
- GE Marquette MAC 2000
This broad compatibility reduces procurement complexity for hospitals managing multiple ECG systems.
Key Features of ECG/EKG Cable DB15 10 Lead
1. High-Precision Signal Transmission
The cable is engineered to deliver stable and interference-free ECG waveforms, ensuring accurate cardiac readings for diagnostic reliability.
2. 10-Lead Patient Monitoring Capability
Supports full 10-lead ECG acquisition for comprehensive cardiac analysis, including:
- Standard 12-lead ECG configurations (via 10-lead system)
- Arrhythmia detection
- Continuous cardiac monitoring
3. Multi-Type Electrode Compatibility
This cable supports multiple electrode connection types for clinical flexibility:
- 3.0 DIN connectors
- 4.0 Banana plugs
- Snap electrodes
- Clip electrodes
- Veterinary clip support
4. Durable Medical-Grade TPU Cable Jacket
- Flexible grey soft TPU material
- Resistant to bending stress and repeated use
- Long operational lifespan in clinical environments

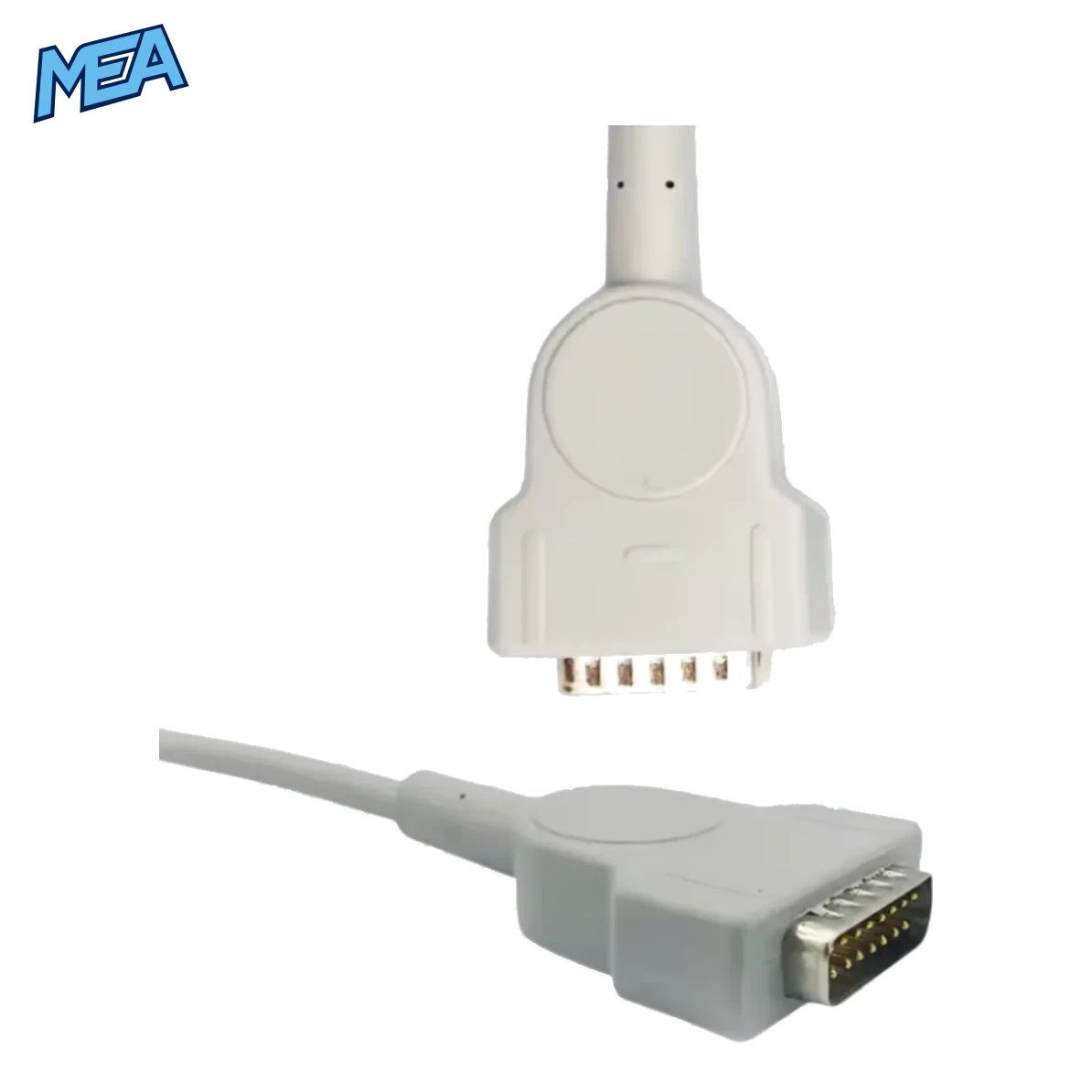

5. Secure 15-Pin DB15 Male Connector
- Stable machine connection
- Ensures consistent ECG signal transfer
- Designed for GE Marquette MAC system interfaces
6. Hospital-Grade Build Quality
- Designed for continuous clinical usage
- Resistant to wear, twisting, and repeated sterilization handling
- Supports high patient throughput environments
Benefits for Clinical Use
Improved Diagnostic Accuracy
Stable signal conduction ensures minimal waveform distortion, supporting precise ECG interpretation.
Reduced Equipment Downtime
As a compatible replacement cable, it minimizes dependency on OEM supply chains and reduces downtime during equipment failure.
Multi-Environment Use
Suitable for:
- Hospitals
- Emergency rooms
- Cardiology clinics
- Diagnostic centers
- Veterinary clinics
Cost-Effective OEM Alternative
Provides OEM-level compatibility without the high replacement cost of original GE branded cables.
Enhanced Workflow Efficiency
Quick electrode connection system allows faster patient setup and reduced preparation time.
Technical Specifications
| Parameter | Specification |
| Product Type | ECG/EKG Patient Trunk Cable |
| Lead Type | 10 Lead System |
| Connector Type | DB15 (15-pin male) |
| Compatibility | GE Marquette MAC Series (400–2000) |
| Electrode Compatibility | DIN 3.0 / Banana 4.0 / Snap / Clip / Veterinary clip |
| Cable Material | Medical-grade soft TPU |
| Color | Grey |
| Packaging | 1 piece per box |
| Signal Type | ECG bioelectrical signal transmission |
| Usage | Diagnostic cardiac monitoring |
Design & Build Quality
The ECG trunk cable is built with clinical durability in mind. Its soft TPU outer insulation ensures flexibility while maintaining structural integrity under frequent bending and movement.
Engineering Highlights:
- Reinforced internal conductor shielding
- Low-noise signal transmission architecture
- Stress-relief molded connector ends
- Flexible yet durable cable routing design
- Resistant to hospital-grade disinfectants (surface cleaning compatible)
Clinical Applications
This GE Marquette MAC ECG cable is widely used in multiple medical and diagnostic scenarios:
1. Cardiology Diagnostics
- Resting ECG tests
- Stress ECG monitoring
- Cardiac rhythm analysis
2. Emergency Medicine
- Rapid cardiac assessment in ER settings
- ICU continuous monitoring setups
3. Hospital Patient Monitoring
- Inpatient cardiac surveillance
- Post-operative monitoring
4. Veterinary ECG Monitoring
- Animal cardiac diagnostics
- Veterinary hospital use with clip electrodes
5. Biomedical Equipment Maintenance
- Replacement cable for ECG machine servicing
- Backup cable inventory for hospital biomedical departments
Why Choose This GE Marquette Compatible ECG Cable?
Hospitals and clinics choose this cable because it balances compatibility, durability, and cost-efficiency.
Key Reasons:
- Works across multiple GE MAC ECG models
- Reliable signal quality comparable to OEM cables
- Multi-electrode compatibility reduces accessory dependency
- Durable TPU construction ensures long service life
- Ideal for high-volume medical environments
Installation & Usage Instructions
Step-by-Step Setup
- Connect DB15 end securely into ECG machine port
- Attach electrode leads to patient electrodes
- Ensure proper lead placement on patient body
- Start ECG recording from GE MAC system
- Verify waveform stability before diagnostic use
Safety Notes
- Ensure connectors are fully seated before operation
- Avoid excessive bending near connector joints
- Clean cable using approved medical disinfectants only
Maintenance Guidelines
To extend product lifespan:
- Store in dry, cool environments
- Avoid twisting cable tightly
- Clean after each clinical use
- Inspect connectors regularly for wear
- Do not sterilize under high heat unless specified by hospital protocol
Frequently Asked Questions
Is this ECG cable compatible with GE MAC 1200?
Yes, this cable is fully compatible with the GE Marquette MAC 1200 ECG system, including MAC 1200ST variants.
What type of connector does this cable use?
It uses a 15-pin DB15 male connector designed specifically for GE Marquette MAC series ECG machines.
Can this cable be used in veterinary clinics?
Yes, it supports veterinary clip electrodes, making it suitable for animal ECG diagnostics.
What electrode types are supported?
This cable supports:
- DIN 3.0
- Banana 4.0
- Snap electrodes
- Clip electrodes
- Veterinary clips
Which machines are supported?
It supports GE MAC 400, 500, 600, 800, 1100, 1200, 1200ST, 1600, and 2000 systems.
What material is the cable made of?
It is constructed from medical-grade soft TPU, ensuring durability and flexibility in clinical environments.
How many leads does this cable support?
It supports a 10-lead ECG configuration, suitable for full diagnostic cardiac monitoring.
